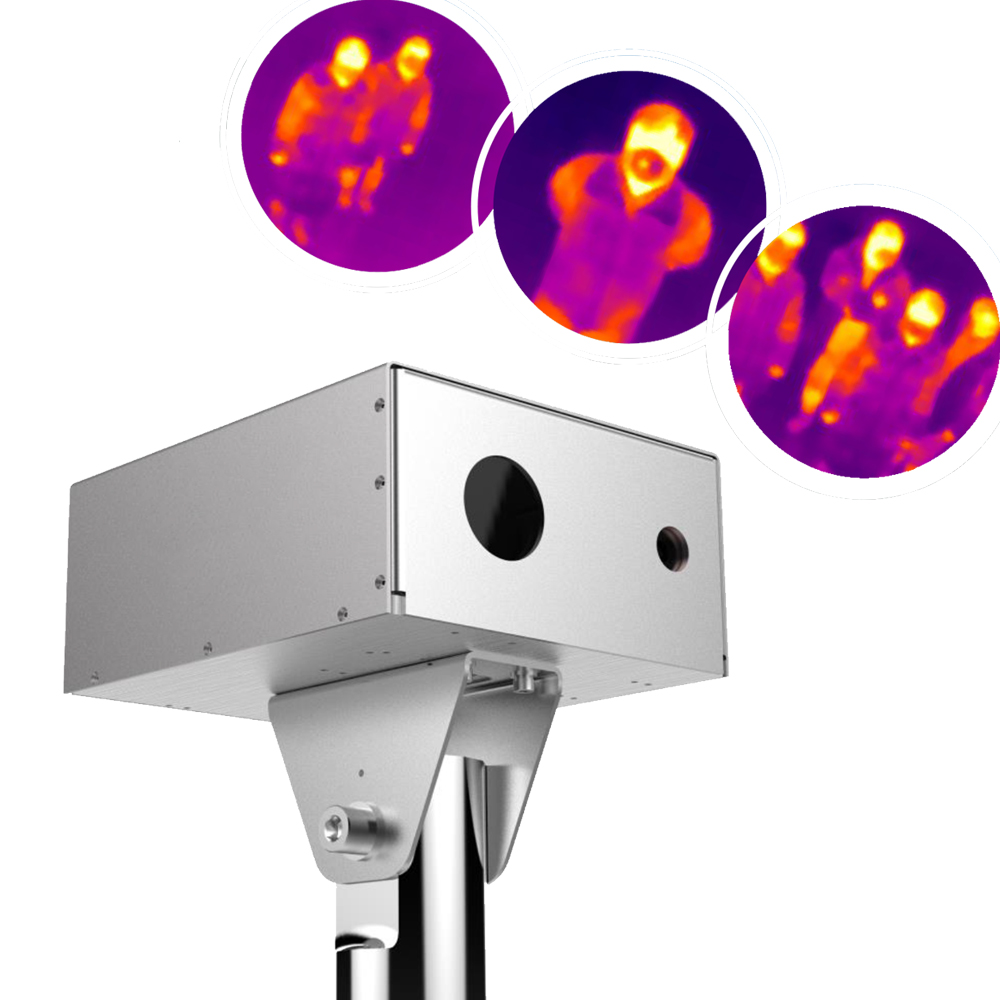

MH-N128 Automatic infrared thermal imaging temperature alarm system
Product overview:
MH-N128 automatic infrared thermal imaging temperature measurement and alarm system adopts military grade infrared thermal imaging technology, which can conduct rapid temperature screening in crowded public places. Once the target with excessive temperature is detected, it will automatically alarm and take photos for preservation.Screening out people with fever in the crowd, improve the efficiency of epidemic prevention and control, and greatly reduce the risk of infection.
Product Advantages:
1.Deep learning algorithm based on neural network makes temperature measurement more accurate and has lower false alarm rate.
2.Intelligent face recognition detection function, reduce misjudgment more accurate.
3.Human body temperature screening, fever alarm and automatically take photos to capture t
Application Area:
1.Support automatic temperature adjustment, support alarm pre-value setting, reduce manual work more efficient.
2.Standard PC, powerful, historical data can be checked
3.Mass body temperature monitoring in public places and screening of people with fever.
4.Control and reduce the spread of fever outbreaks such as ebola, SARS, zika and xinji.
he fever target.

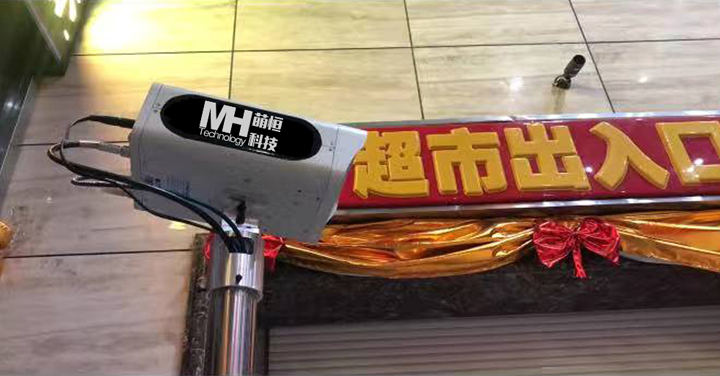

Suitable for station/hospital/factory/school/shopping mall/office building and other orderly flow of people in and out of the scene.
|
MH-N12820
|
|
Infrared
|
|
Resolution
|
120×90
|
|
Pixel Size
|
17μm
|
|
Thermal
sensitivity (NETD)
|
≤0.08℃
|
|
field of view
|
50°±1
|
|
Frame Rate
|
25Hz
|
|
visible light
|
|
Resolution
|
1920×1080（2 million pixels）
|
|
Focus
|
2.8 mm
|
|
field of view
|
Horizontal field of view 97.4°
|
|
Frame Rate
|
25Hz
|
|
Temperature accuracy
|
|
Temperatur
emeasurement
Range
|
20℃-50℃
|
|
Temperature
measurement accuracy
|
From 1.0 to 1.5m, within the range of 32-42 ° c, ±0.5 ° c
|
|
Mechanical interface
|
|
Interface between infrared head
and main engine
|
Two network interface RJ45, one power interface
|
|
Host and server interface
|
network interface RJ45
|
|
Power
|
|
input voltage
|
DC 12V
|
|
input power
|
≤12W
|
|
Software function
|
|
parameter setting
|
Alarm threshold setting, shielding area setting, etc
|
|
face recognition
|
Intelligent face recognition
|
|
temperature
measurement
|
Superposition of temperature cursor, maximum temperature alarm in face recognition area
|
|
Alarm
|
Automatic alarm drawing, alarm prompt sound
|
|
Historical data query
|
Query historical alarm data, process historical alarm data
|
|
Internal body surface temperature correction
|
Automatic intelligent correction
|
|
Environmental suitability
|
|
Operation Temperature
|
-10~50℃（Ambient temperature 16~32℃ accurate temperature measurement）
|
|
storage temperature
|
-20~60℃
|
|
operating humidity
|
＜90%（Non - Condensing）
|
|
impact
|
30g 11ms，IEC60068-2-27
|
|
Vibration
|
10HZ~150Hz~10Hz 0.15mm，IEC60068-2-6
|
|
Specification
|
|
Head size
|
174 ×153 ×81.5
|
|
Head box size
|
510 ×440 ×270
|
|
Stud height
|
About 1.9 m
|
|
Weight
|
≤45kg
|
