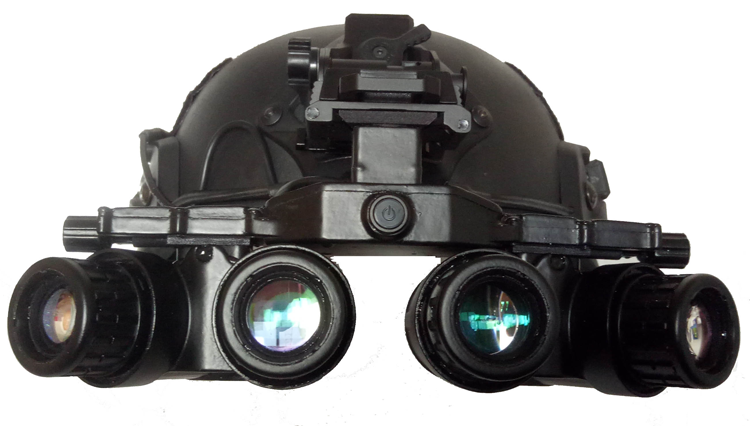

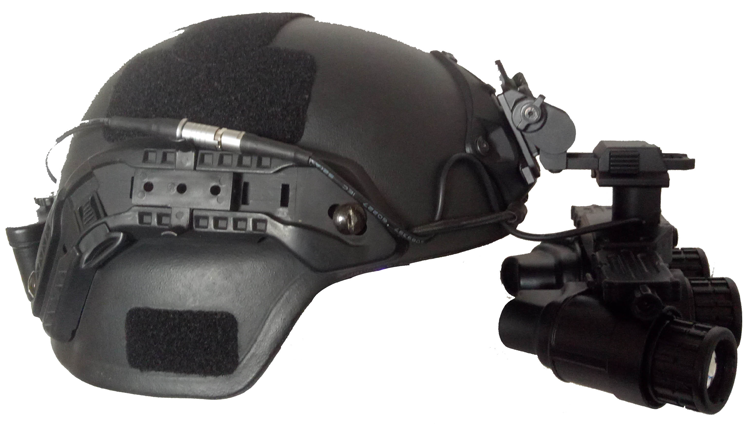

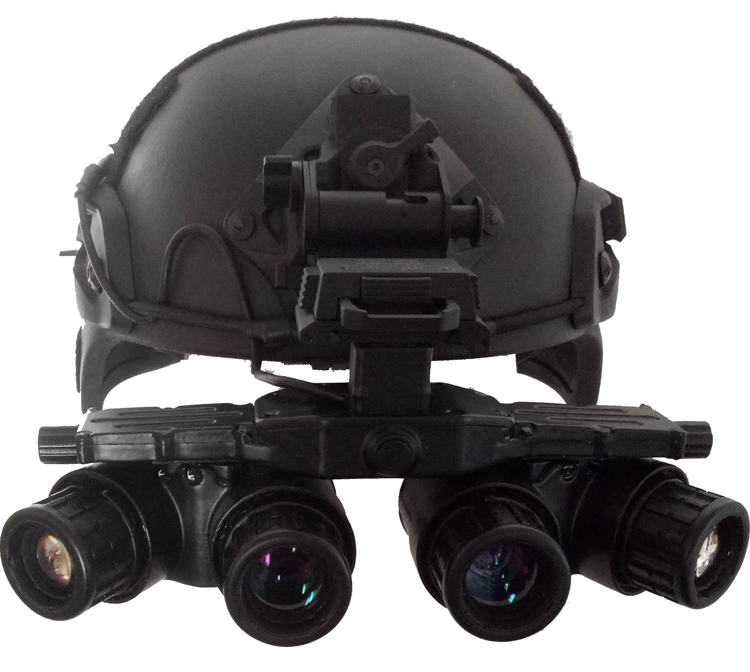

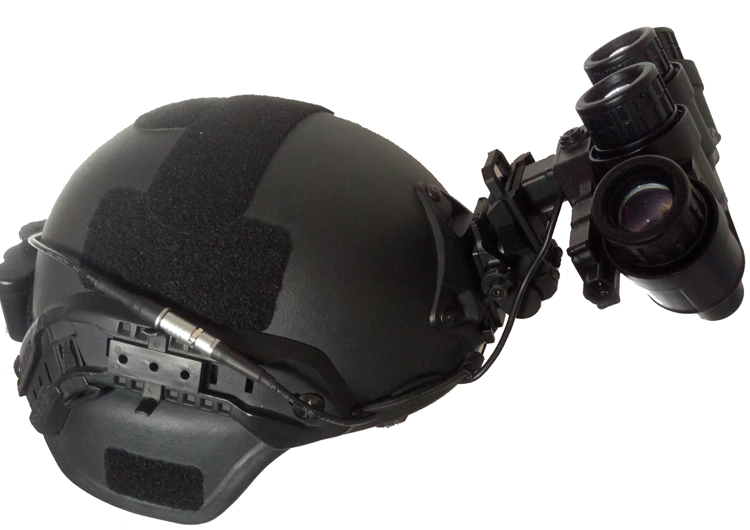

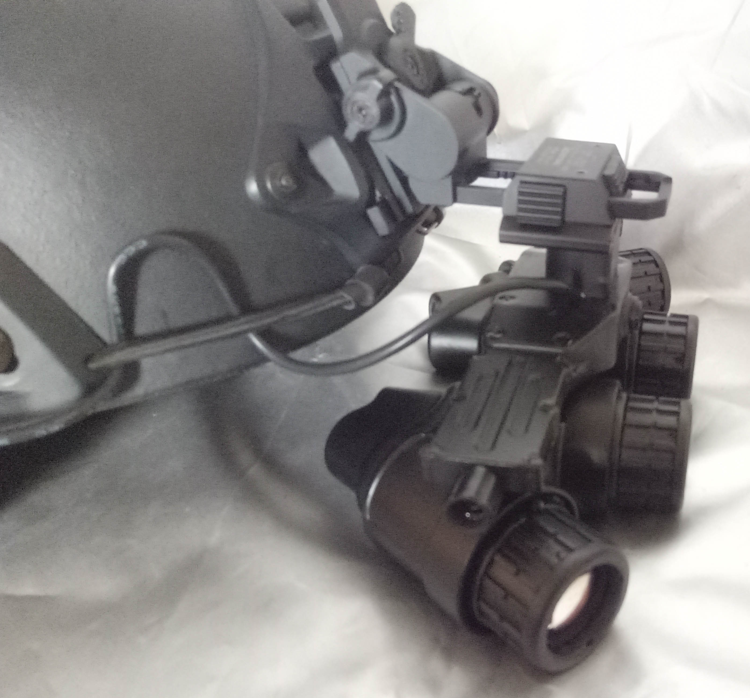

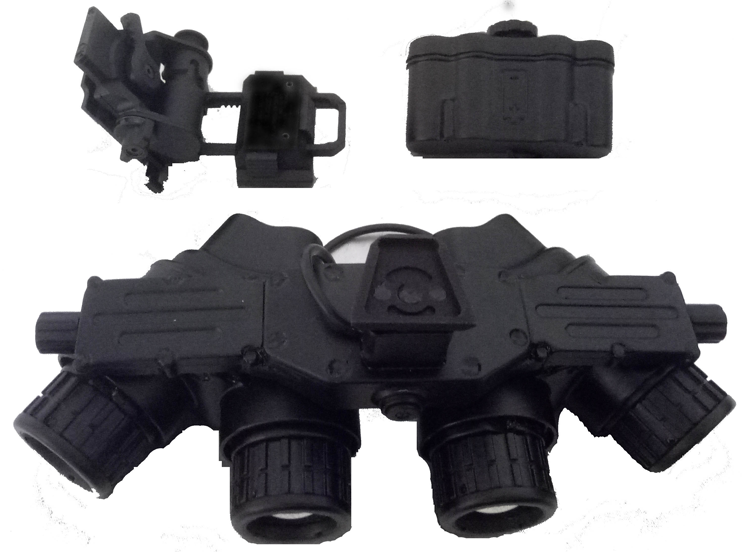

| Helmet-mounted GPNVG Ground Panoramic Night Vision Goggle |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
The Ground Panoramic Night Vision Goggle (GPNVG) by MH, provides the operator with a 97-degree panoramic field-of-view that enables increased situational awareness and operational effectiveness during night time operations.
Key Benefits:
-
Provides the operator maximum visual information for accurate assessment and acquisition
-
The 97 degree panoramic field-of-view provides increased situational awareness during periods of reduced light and night time operations.
|
|
Technical Parameters
|
|
Host dimensions
|
110 (L)×230 (W)×88 (H) mm
|
|
Host weight
|
<720g
|
|

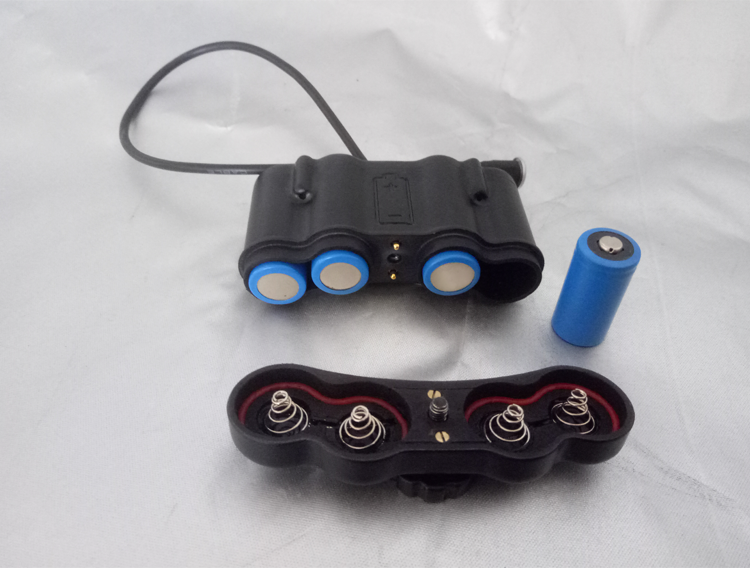

Power box weight
|
＜80g (without battery)
|
|
Helmet attachment mechanism weight
|
＜280g
|
|
Exterior
|
Black (or manufactured according to user requirements)
|
|
power supply
|
4 CR123 lithium batteries (or CR123Arechargeable lithium batteries)
|
|
operating hours
|
＞30 hours
|
|
Operating temperature
|
-40℃~ 50℃
|
|
Low light device
|
Super second-generation 18mm low-light image intensifier
|
|
Resolution
|
55lp-72 / mm
|
|
Gain control
|
automatic
|
|
Magnification
|
1×
|
|

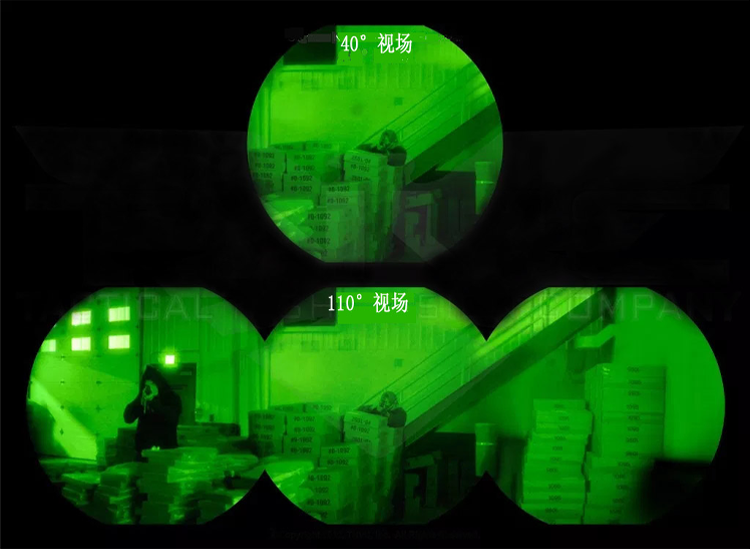

Field of view
|
110°(horizontal)×40°(vertical)
|
|
Exit pupil diameter
|
7mm
|
|
Exit pupil distance
|
20mm
|
|
Interpupillary distance adjustment range
|
58-72mm
|
|
Focusing range
|
1m ~ infinity
|
|
Vision
|
-1 diopter (fixed)
|
|
Tightness
|
1 meter water depth, 2 hours
|
