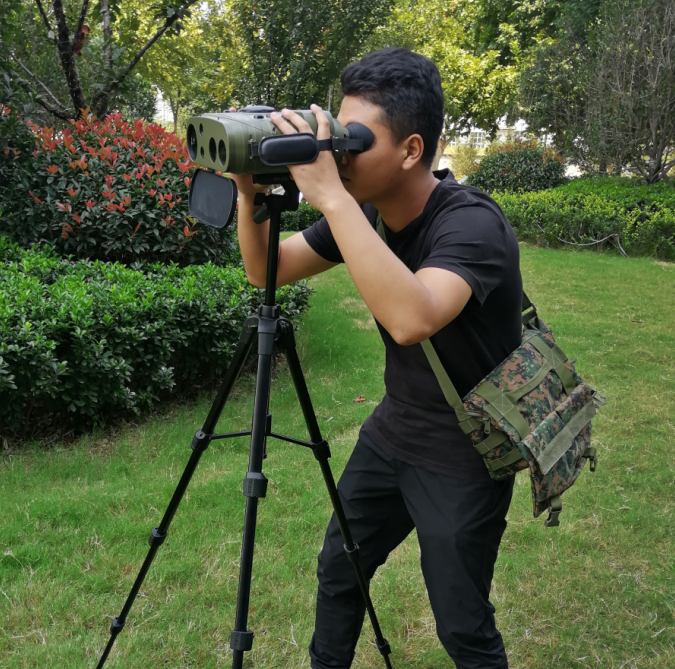

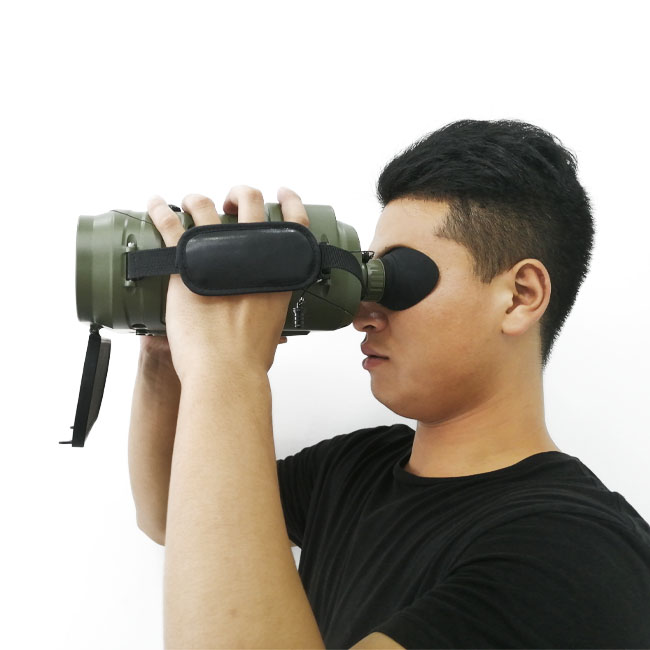

MH-C6420 Portable cooled thermal camera




night vision long range cooled thermal camera

Email:      jacky@mh-elec.com

MH-C6420 Portable cooled thermal camera is integrated with functions of target detection and information recording, can be applied for long distance detection, surveillance and information collection. It is widely applied for harbor monitoring, maritime search and rescue, border patrol and other functions.
Features
1.High resolution thermal imager, high resolution visual camera, work all day, see through glare;
2.Multi functions: Video monitoring, image overview, download, delete, polarity display, manual/auto contrast control, brightness; auto calibration; bad pixels removal; digital zooming, GPS, electrical compass, eye-safe laser ranging; video recording.
3. The output imager can be displayed on its color OLED display and alternatively on a control&display units connected to a host machine which makes it suitable for complex maneuvers.
4. Environmental adaptability: anti-vibration, anti-shock and electromagnetic compatibility.
5.User friendly,easy to operate.
6. Good mobility: Small volume, light weight, easy to carry; Li-batteries, suitable for independent field work.
Thermal imaging
Sensor type cooled FPA
Resolution 640*512
Wavelength 3.7-4.8 μm.
Cool down type 6m30s(environment temperature 20)
Lens f=60mm/240mm  F#4.0
Focus Auto/manual
FOV NFOV2.3°×1.83°
WFOV9°×7.3°
Image control White/ black polarity; motorize
CCD
Focal length 16.75mm/100mm
Display
Display type OLED
Resolution 1024×768
Reticles luminance Customized
GPS
GPS GPS, GNNS
GPS accuracy 10m. CEP(Typical data)
Target geolocation yes
DMC
Type Digital Compass
Accuracy ≤0.5°
LRF(Rangefinder capability)
Min. distance 100m.
Max. distance 4Km(Autosphere Visibility 23.5km, for 2.5m*5.2m tank)
Accuracy ±5m.
Interface
Video Output CCIR/PAL
Data output USB
Control RS232
Mechanical interface Standard tripod interface
Power supply rechargeable battery
Syetem
Working temp. -40 ºC./55ºC.
Storage temp. -45 ºC./70ºC.
Waterproof IP67
Drop test 1.5m
Interface USB2.0
Working time/cycle Rechargeable battery, continuous working time is more than 3.5h. (20ºC.)
Battery type Li-ion
Weight ≤4kg. (Inc. batteries)
Size 295mm×270mm×110mm.
Recognition Range Capability
Tank(2.5*5.2m) 5000m
Human(0.5*1.7m) 3800m
