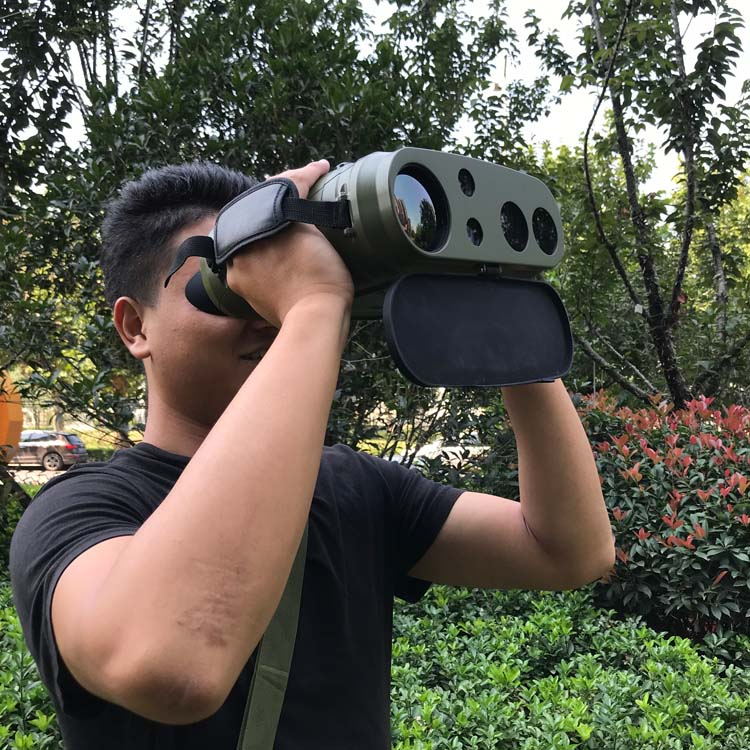

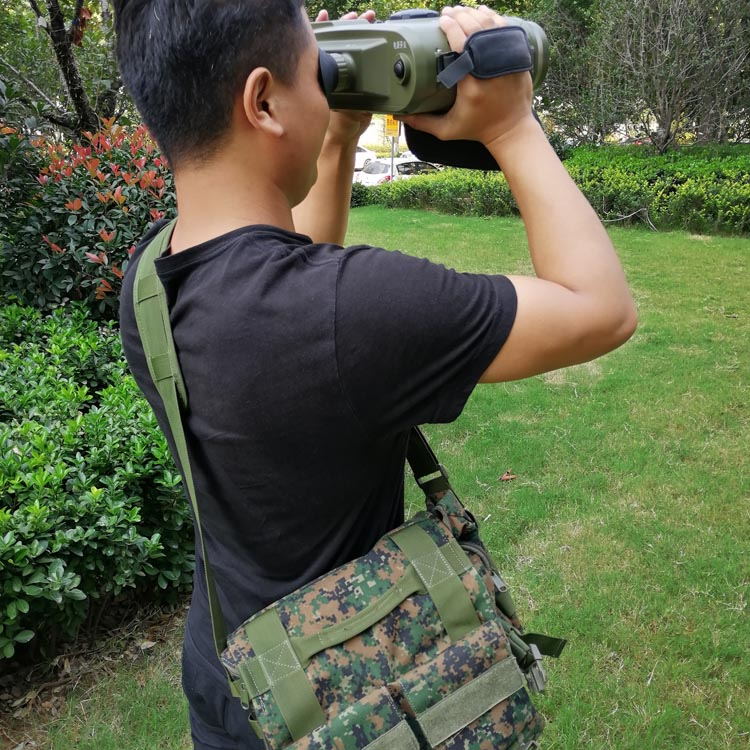

Multi-functional Cooled thermal Binocular MH-C3320
|
|
MH-C3320 Portable cooled thermal camera is integrated with functions of target detection and information recording, can be applied for long distance detection, surveillance and information collection. It is widely applied for harbor monitoring, maritime search and rescue, border patrol and other functions.
|
|
Features
|
|
1.High resolution thermal imager, high resolution visual camera, work all day, see through glare;
|
|
2.Multi functions: Video monitoring, image overview, download, delete, polarity display, manual/auto contrast control, brightness; auto calibration; bad pixels removal; digital zooming, GPS, electrical compass, eye-safe laser ranging; video recording.
|
|
3. The output imager can be displayed on its color OLED display and alternatively on a control&display units connected to a host machine which makes it suitable for complex maneuvers.
|
|
4. Environmental adaptability: anti-vibration, anti-shock and electromagnetic compatibility.
|
|
5.User friendly,easy to operate.
|
|
6. Good mobility: Small volume, light weight, easy to carry; Li-batteries, suitable for independent field work.
|
|
Thermal imaging
|
|
Sensor type
|
cooled FPA
|
|
Resolution
|
320*256
|
|
Wavelength
|
3.7-4.8 μm.
|
|
Cool down type
|
6m30s(environment temperature 20℃)
|
|
Lens
|
f=60mm/240mm F#4.0
|
|
Focus
|
Auto/manual
|
|
FOV
|
NFOV2.3°×1.83°
WFOV9°×7.3°
|
|
Image control
|
White/ black polarity; motorize
|
|
CCD
|
|
Focal length
|
16.75mm/100mm
|
|
Display
|
|
Display type
|
OLED
|
|
Resolution
|
1024×768
|
|
Reticles luminance
|
Customized
|
|
GPS
|
|
GPS
|
GPS, GNNS
|
|
GPS accuracy
|
10m. CEP(Typical data)
|
|
Target geolocation
|
yes
|
|
DMC
|
|
Type
|
Digital Compass
|
|
Accuracy
|
≤0.5°
|
|
LRF(Rangefinder capability)
|
|
Min. distance
|
100m.
|
|
Max. distance
|
4Km(Autosphere Visibility 23.5km, for 2.5m*5.2m tank)
|
|
Accuracy
|
±5m.
|
|
Interface
|
|
Video Output
|
CCIR/PAL
|
|
Data output
|
USB
|
|
Control
|
RS232
|
|
Mechanical interface
|
Standard tripod interface
|
|
Power supply
|
rechargeable battery
|
|
Syetem
|
|
Working temp.
|
-40 ºC./55ºC.
|
|
Storage temp.
|
-45 ºC./70ºC.
|
|
Waterproof
|
IP67
|
|
Drop test
|
1.5m
|
|
Interface
|
USB2.0
|
|
Working time/cycle
|
Rechargeable battery, continuous working time is more than 3.5h. (20ºC.)
|
|
Battery type
|
Li-ion
|
|
Weight
|
≤4kg. (Inc. batteries)
|
|
Size
|
295mm×270mm×110mm.
|
|
Recognition Range Capability
|
|
Tank(2.5*5.2m)
|
4000m
|
|
Human(0.5*1.7m)
|
2500m
|
