| Monocular type night vision thermal riflescope MH-35-6 |
Introduction:

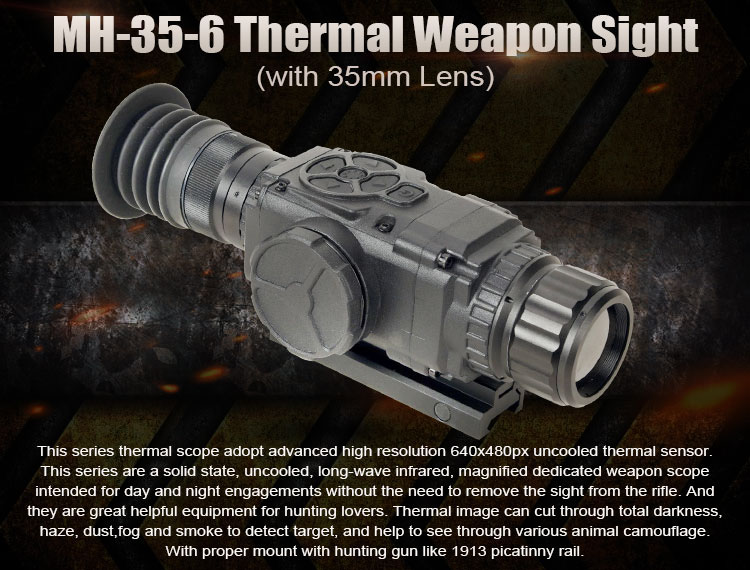

High quality military thermal monocular infrared military scope adopts advanced high resolution 640*480px uncooled thermal sensor. MH series Thermal image are a solid state, uncooled, long-wave infrared, magnified dedicated weapon scope intended for day and night engagements without the need to remove the sight from the rifle. And they are advanced and great helpful equipment for hunting lovers. Thermal image can cut through total darkness, haze, dust,fog and smoke to detect target, and help to see through various animal camouflage. With proper mount with gun like 1913 picatinny rail, the thermal image also helps to shoot the animals.
Advantages:

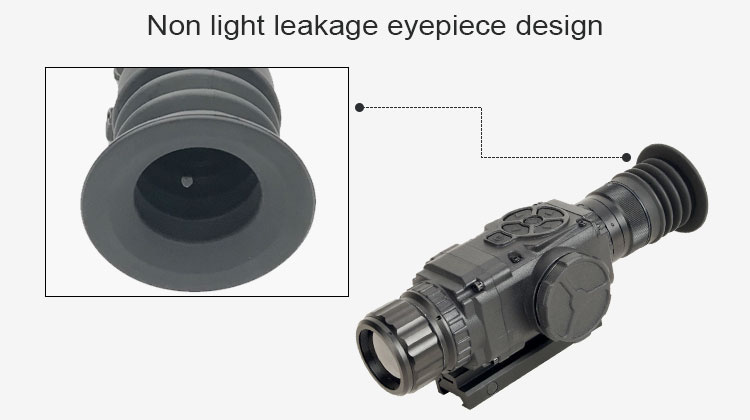

1. MH-35-6 military night vision thermal riflescope is designed with non light leakage eyepiece, which gives protection especially in darkness.

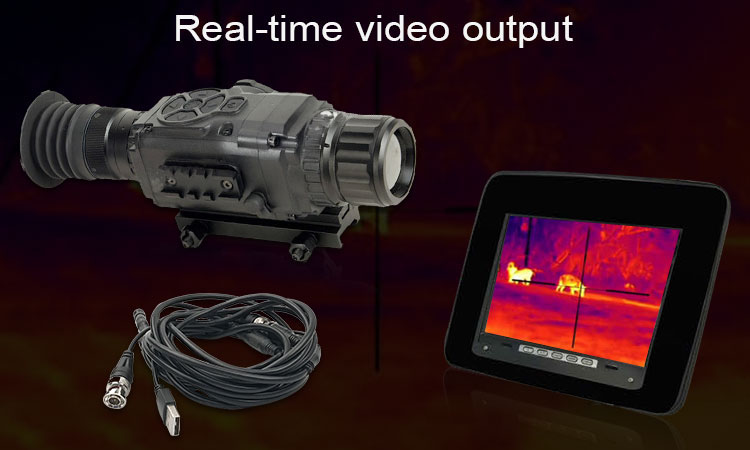

2. MH-35-6 military night vision thermal riflescope supports Real-time video output, which enables you to share the exciting moment with friends, family.

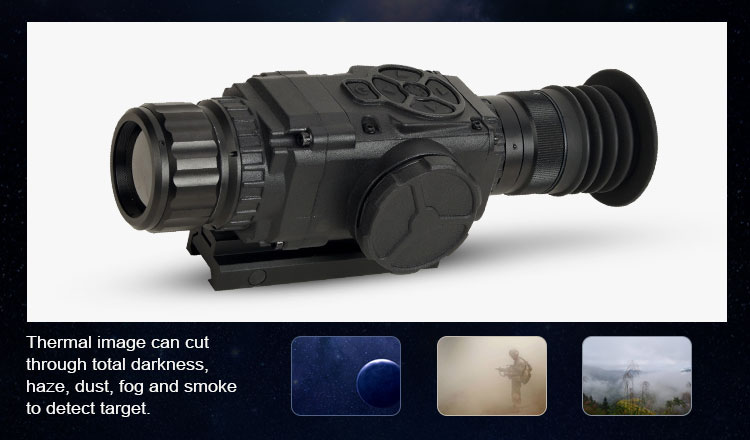

3. Thermal image can cut through total darkness, haze, dust, fog and smoke to detect target.
4. The thermal imaging weapon sight gives you good visual experience by bringing you different images.

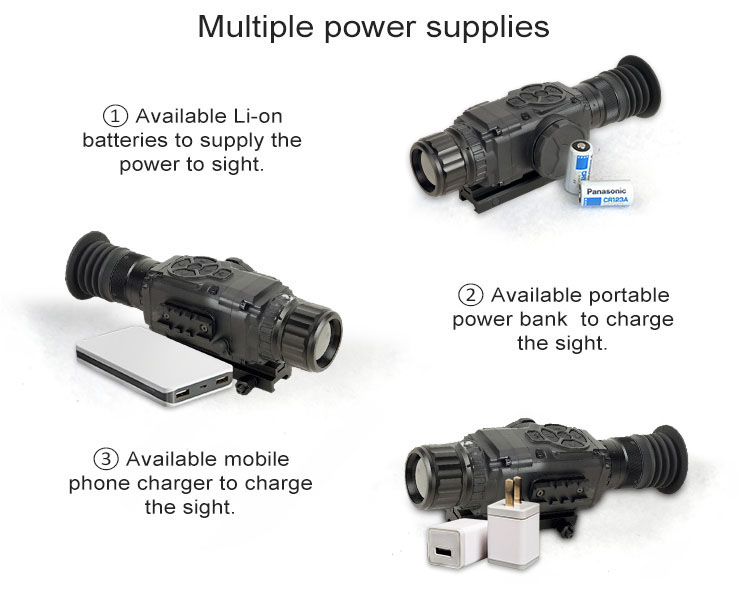

5. Do not worry there is no power on Cheap thermal monocular infrared military scope night vision. Multiple power supplies can meet your different power requirements anytime and anywhere.
|
Specification of Cheap thermal monocular infrared military scope night vision
|
|
Model
|
MH-35-6
|
|
Sensor resolution
|
Uncooled 640x480px
|
|
Material
|
Amorphous Silicon
|
|
Frame rate
|
50Hz
|
|
Thermal sensitivity
|
<50mK
|
|
Display
|
Color OLED matrix,
SVGA<800x600
|
|
Vedio output
|
Yes
|
|
Image size
(output resolution)
|
800x600px
|
|
Spectral range
|
7-14μm
|
|
Lens system
|
35mm F/1.0
|
|
FOV(HxV)
|
17.7°x13.3°
|
|
Eye relief
|
52mm
|
|
Optical magnification
|
1.5x
|
|

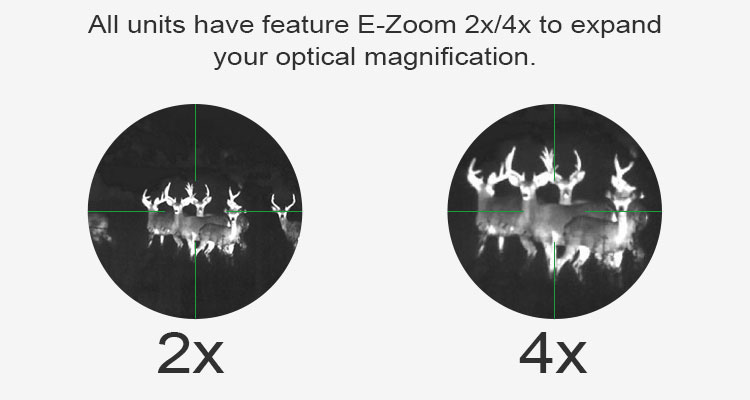

E-Zoom
|
1x/2x/4x
|
|
Diopter
|
-4 to +2 degree
|
|

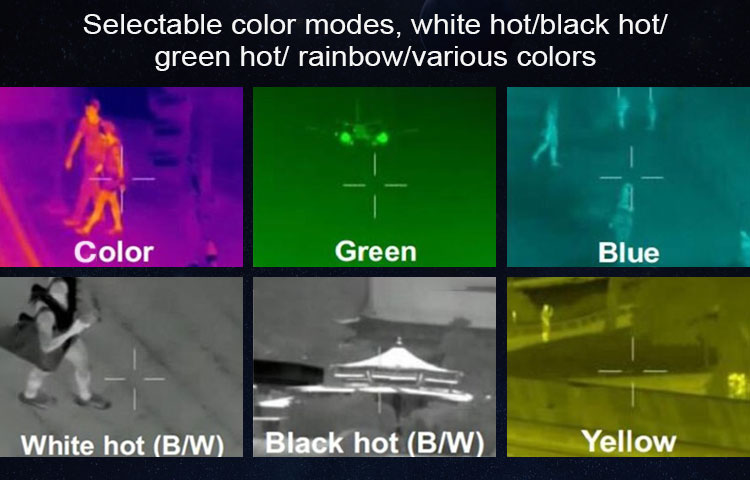

Palette
|
White hot/black hot/
multiple color modes
|
|
Observation Distance
|
|
Distance of the
human detection
|
1250m
|
|
Distance of the
human recognition
|
460m
|
|
Distance of the
human identification
|
320m
|
|
Environmental
|
|
Start up time
|
<5s
|
|
Operating temperature
|
-40℃ to +50℃
|
|
Storage temperature
|
-45℃ to +85℃
|
|
Environmental rating
|
Waterproof/dustproof
|
|
Power
|
|
Battery type
|
4 x CR123A battery type
|
|
Battery life
|
8 hours
|
|
Low battery indicater
|
Yes
|
|
Physical parameters
|
|
Dimension
|
240x82x82mm
|
|
Weight
|
740g
|
