| MH-RF50 hand-held laser rangefinder |
Pls click or email to
mh_elec@126.comorjacky@mh-elec.com

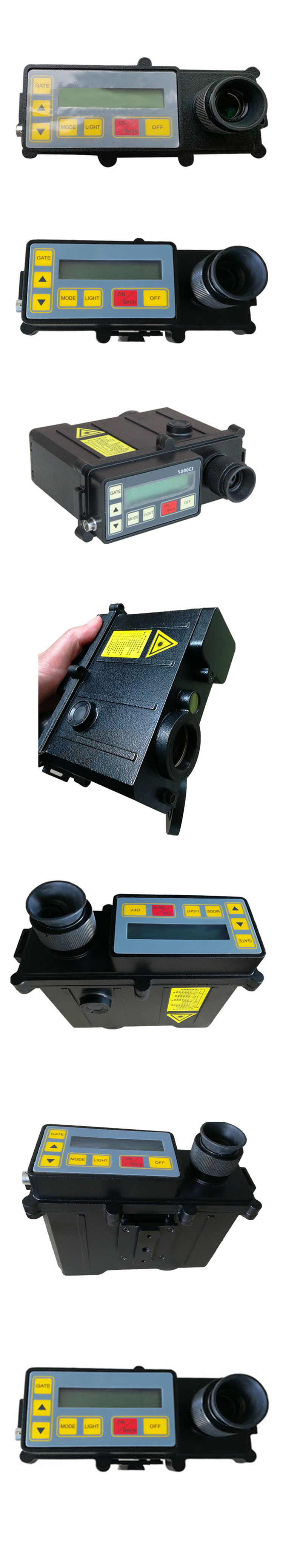

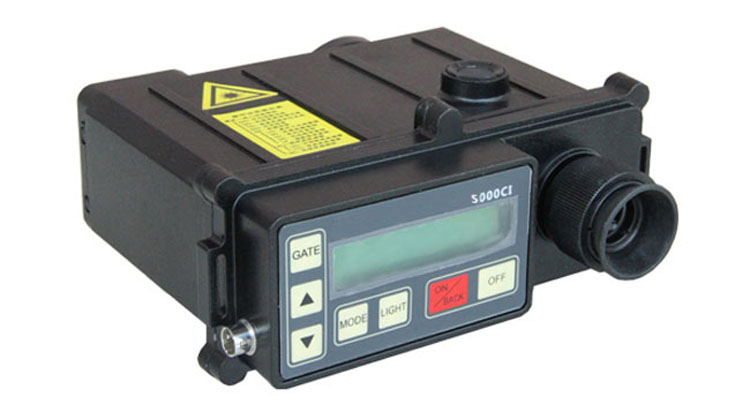

MH-RF50 hand-held laser rangefinder with light, machine, electricity, and laser as one and it has the function of a telescope and laser rangefinder. In the observation of inside object, at the same time, we can measure the target distance. It is characterized by small volume, light weight, high precision, simple operation, reliable performance, easy to carry and small power consumption. MH-RF50 mainly used for field observation target and quickly, accurately measuring the distance to the selected target. Can be widely used in military, engineering construction, field entertainment observation activities, and also can be used for the general topographic survey.
Technical Specification：
Measure range：20~5000m
Error：+/-1m
Receiving Aperture Diameter: ф30mm
Visual Field: 6.5°
Magnification: 8X
Correct Ranging Probability: 98%
Repeatability Ratio: 1/6~1/3 Hz (10~20times/min)
Output interface: RS232,2400,8,N,2
Laser Source: Nd:YAG
Wavelength: 1.064mm
Output Power: ≥5mj
Life time: ≥20000 times
Operate temperature：-20℃~+60℃
Dimension: 115X152X54mm
Weight:: 1kg (including battery package)
