| Customed Thermal Imaging Ge Window |
Pls click or email to mh_elec@126.com
or jacky@mh-elec.com
Product Details
Germanium (Ge) single crystal is a chemically inert material with a transmission spectrum ranging from 2 to 12 μm. It is a very common infrared optical material with high hardness, good thermal conductivity and insoluble in water. Infrared imaging system and infrared spectrometer system. The single crystal has good mechanical and thermal conductivity, and has very low absorption at 10.6μm. It is an ideal material for CO2 laser lens, window and output coupling mirror. Used as a base material for various infrared filters.
Focus on infrared cameras and infrared optical components
1.Manufacturers of genuine goods
Our company(Xi'an MH Electronics and Technology Co., Ltd) experienced in the fields of engineering, prototyping, manufacturing, servicing of thermal imaging night vision products, Laser gyro, military mobile ad Hoc networks station...
At the same time, we invests and builds the uncooled thermal detector production line to produce the 384 and 640 thermal detector.
2.Specification
Various specifications,accept customization
3.After sales
If the goods quality problem, when you received the goods within 24 hours, we will return new one at the shortest time.

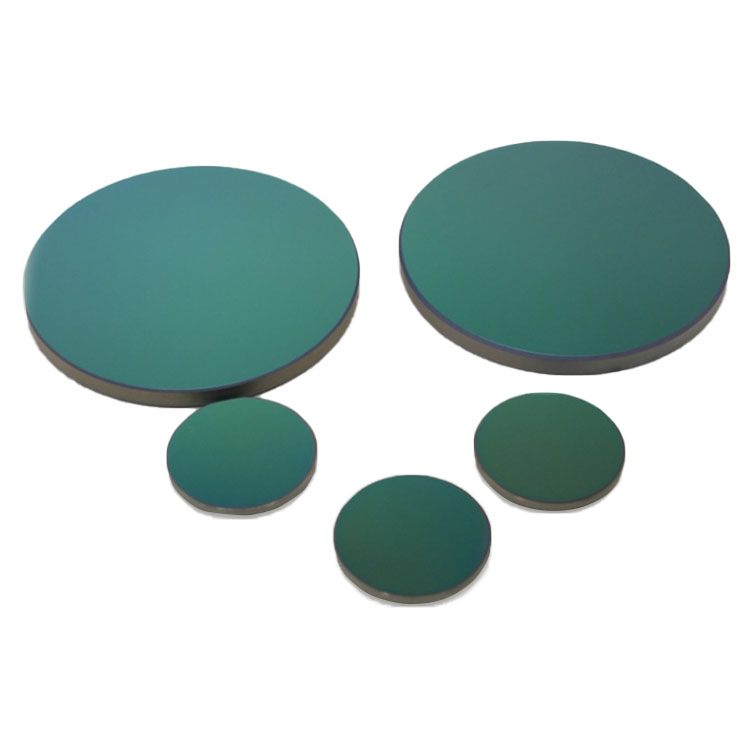

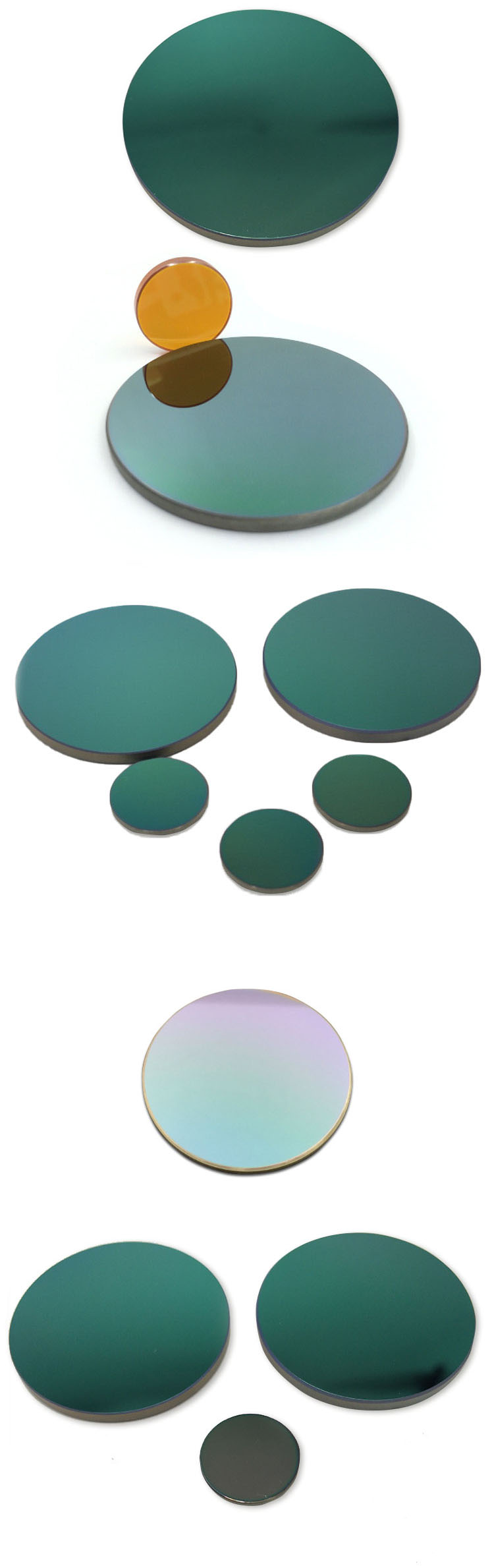

Product Introduction
Diameter D 50.8*3mm
D 37.5*3
D 35*3
Product Parameters
|
Material
|
Ge single crystal
|
|
Coating band
|
3-5/8-14 μm
|
|
Diameter tolerance
|
+0/-0.1mm
|
|
Thickness tolerance
|
±0.1mm
|
|
Passage aperture
|
＞90%
|
|
Face type
|
λ/2per1 Dia
|
|
Surface Quality
|
40-20
|
|
Specification
|
Commercial grade
|
Precision level
|
High precision
|
|
Size range
|
1-600mm
|
2-600mm
|
2-600mm
|
|
Diameter tolerance
|
±0.1mm
|
±0.025mm
|
±0.01mm
|
|
Thickness tolerance
|
±0.1mm
|
±0.025mm
|
±0.01mm
|
|
Center tolerance
|
±3
|
±10
|
±2
|
|
Surface quality
|
60-40
|
40-20
|
20-10
|
|
Surface accuracy
|
1.0 λ
|
λ/10
|
λ/20
|
|
Coating
|
According to customers requirement
|
|
Bevelling
|
0.1-0.5mm 45°
|
|
Material
|
Germanium
Zinc Selenide
Silicon
|
