Model
|
MH-M670
|
|
Main Parameter
|
|
Detector type
|
Uncooled microbolometer
|
|
Thermal sensor resolution
|
640x480 px, 17μm
|
|
Spectral range
|
8~14μm
|
|
Frame rate
|
50Hz
|
|
NETD
|
<60mK@300k(F#1.0)
|
|
Micro dispaly
|
0.6 inch 800×600 OLED
|
|
Image Processing
|
|
E-Zoom
|
2×/4×
|
|
Image adjustment
|
White hot/Black hot/Colour
|
|
Optical Parameter
|
|
Focal Length
|
70mm
|
|
Focus
|
Manual focus
|
|
F#
|
1
|
|
Foucs range
|
5m~∞
|
|
Field of View
|
8.8°×6.6°(H×V)
|
|
WIFI
|
YES
|
|
Video Recording and Storage
|
|
Photo Snap
|
Yes
|
|
Video Recording
|
Yes
|
|
Video storage
|
built-in 16Gb
|
|
Video output
|
Analog :BNC Digital:USB2.0
|
|
Observation Distance
|
|
Persons(Standing man)
|
Detection:2.0km Recognition:1.0km
|
|
Vehicle(NATO Tank)
|
Detection:4.0km Recognition:1.6km
|
|
Power Parameter
|
|
Power
|
Rechargeable lithium battery, 7.2V/2000mAH
|
|
Power consumption
|
<3.0W (@25℃)
|
|
Operating hours
|
Continuous working time: ≥4hours
|
|
Environmental parameters
|
|

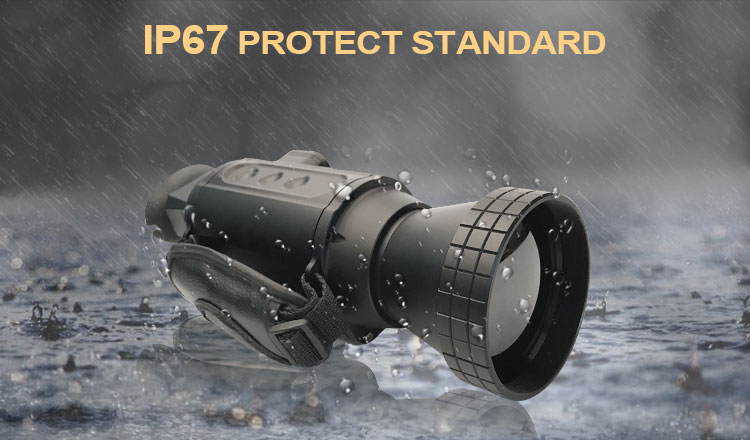

Seal standard
|
IP67
|
|
Operating temperature
|
-30°C~+60°C
|
|
Storage temperature
|
-40°C~+70°C
|
|
Humidity
|
5%~95%( Non-condensing)
|
|
Vibration
|
Sweep frequency:5-200-5Hz,G-force:10g
|
|
Impact
|
10g/11ms Half sine wave
|
|
Physical parameters
|
|
Product Weight
|
922g (Including Battery)
|
|
Dimension (mm)
|
220×80×80mm
|
|
Mount Adaptor
|
Standard 1/4' tripod mounting
|
