Specification of MH-M58 Smallest and
Lightwest Night Vision Monocular
|
|
Items
|
Parameters
|
Index remarks
|
|
Bare weight
|
111g
|
Exclude one 18650
rechargeable battery
|
|

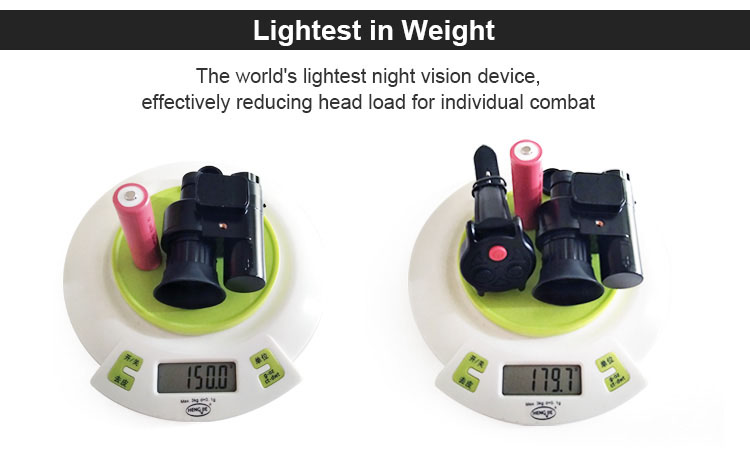

Total weight
|
180g
|
Include one 18650
rechargeable battery
and the watch
|
|
Helmet bracket
|
95g
|
Color: Black
Material: Aviation
aluminum alloy
Technology:
Micro-arc oxidation
(Matte surface
treatment)
|
|
Standby time
|
36h
|
24h (Infrared mode)
|
|
Bare length
|
8.7cm x 6.5cm x 4.5cm
|
|
Night vision
effective distance
|
1000m
|
Reference:
1.7*0.5m
Chinese male
|
|
Night vision
recognition
distance
|
350m
|
|

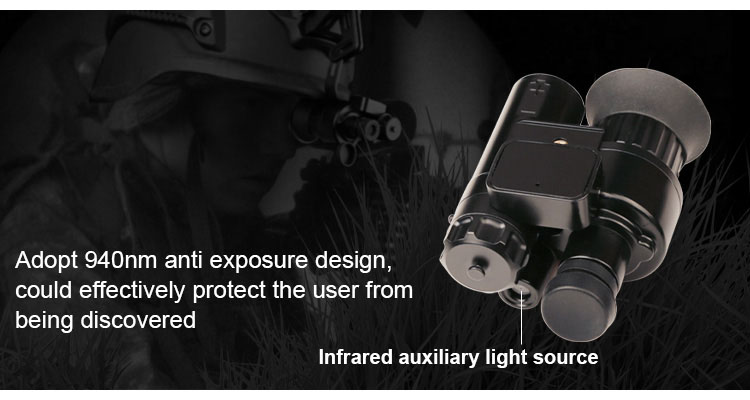

Infrared
wavelength
|
941.7nm
|
Anti-exposure
|
|
Infrared
operating mode
|
Infrared off / Low lighting mode /
Medium lighting mode /
High lighting mode
|
|
Image sensor
|
1/1.9' WYX185C-MM
|
|
Field of view
|
27° * 19° (Horizontal * Vertical)
|
|
Pixel spacing
|
7.6um
|
|
Minimum
Focusing Distance
|
12.86cm
|
|
Objective diameter
|
18mm
|
|
Objective material
|
Ceramics
|
|
Rated voltage
|
2.4V-5.5V
|
|
Operating voltage
|
18650, 3.7V, 2500mAh
|
|
Movement power
|
0.94W
|
|

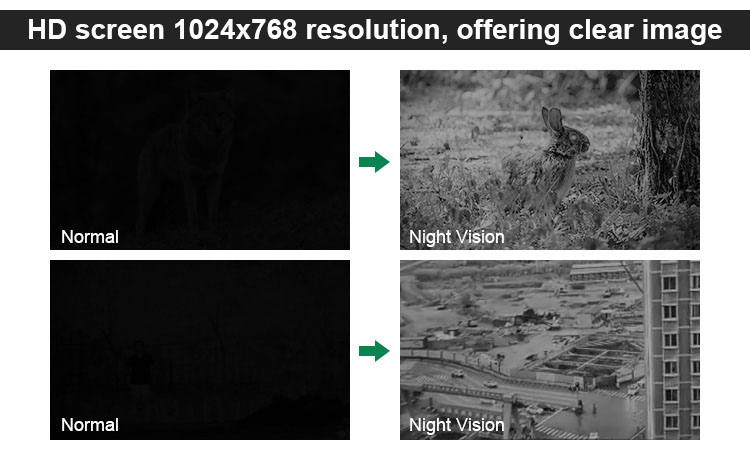

Resolution
of OLED display
|
1024*
768px
|
Super clear
display at night,
effectively
identify targets
|
|
Pixel size
|
6um*6um
|
|
Minimum
illumination
at night
|
0.0013 lux
|
|
Display size
|
0.38inch
|
Black and white image
|
|
Display brightness
|
Adjustable
|
One-button operation,
15 gears adjust the
screen brightness for
different lighting
situations
|
|

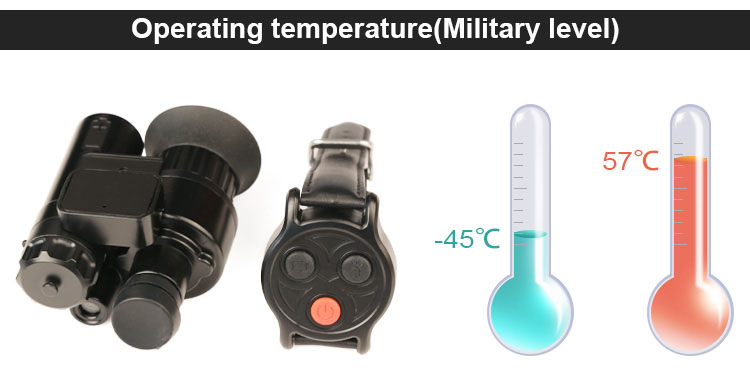

Operating
temperature
|
-45℃~+57℃
(Military level)
|
Works well in
harsh environment
|
|
Level of protection
|
IPX6
|
|

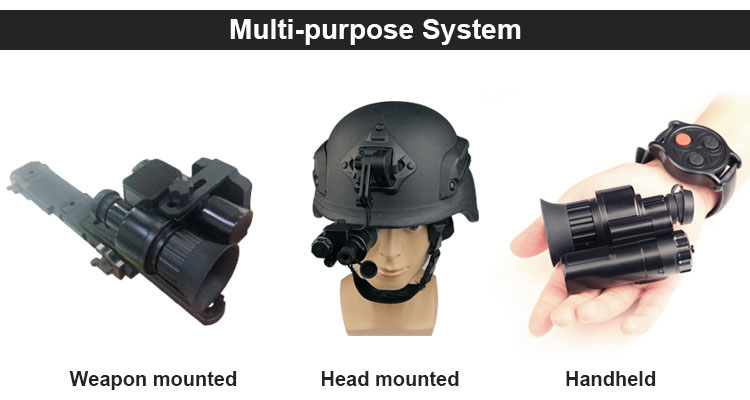

Installation
|
Handheld / Helmet mounted
|
|
Package
|
Waterproof
box+Waterproof hard carton
|
