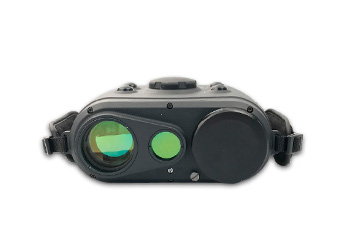

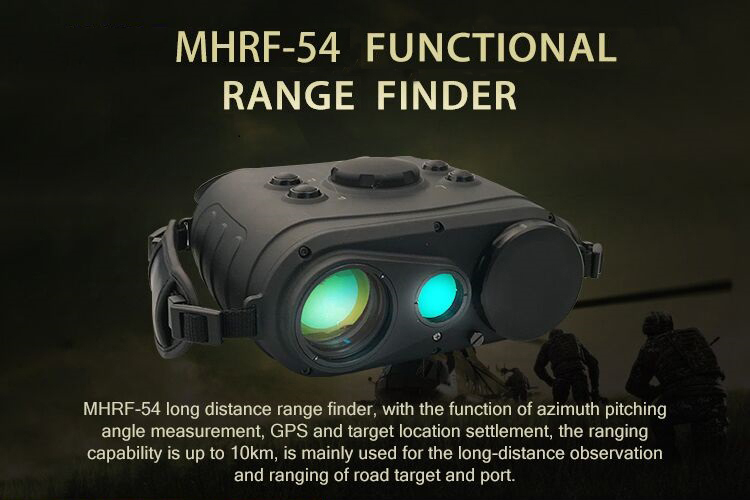

MHRF-54 Laser Range Finder

Pls click or email to

mh_elec@126.comorjacky@mh-elec.com



Model

MHRF-54

Wavelength

1.57μm (eye safe)

Peak power

≥1MW

Receiving aperture (mm)

40

Optical amplification

×7

Detector

APD

Ranging capability (km)

10

Distance accuracy

±5m

Repetition rate

20ppm

Digital compass accuracy

≤1o

GPS accuracy

≤10m

Operation temperature

-30℃~60℃

Power supply

4 pieces of 18650 lithium batteries

Interface

RS422

Size (mm)

≤220×210×90

Weight

1.8Kg
