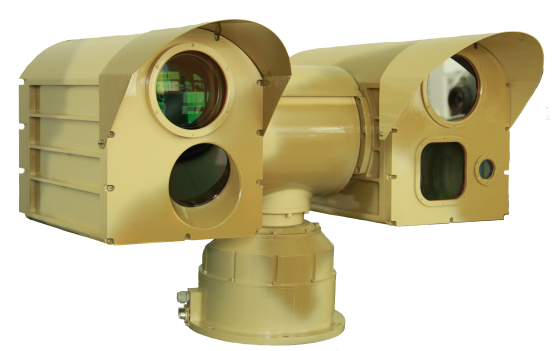

MH-C82 Four in One Photoelectric Reconnaissance Device

Pls click or email to

mh_elec@126.comorjacky@mh-elec.com




Application

* Detect and recognize the target in Day and Night

Function and Features

* Day and Night operate,detect and recognize the target of water-surface, land and sky.

* IRC-32 can serve as vigilance,reconnaissance and detection mission

* Target range finding

Technical Parameters

Item

Specification

Cooled Infrared Unit

Detector type

640×512Cooled FPA

Spectral Range

3~5μm

Focal Length

18~250mmContinuous zooming

Uncooled Infrared Unit

Detector type

640×480Uncooled FPA

Response band

8~12μm

Focal Length

50~150mm

Laser Unit

Laser type

1.57μm(Eye-safe)

measuring distance

15km

Repeat frequency rate

20PPM(normal),

1Hz(emergency) (operate30s,rest1minute)

TV

Focal Length

23mm~755mm

Resolution

Analog signal600lines

minimum illumination

0.01Lux

Servo platform

Rotary range

Position:360°×n;Pitch:-45°~+90°

Rotary velocity

Position,Pitch angular velocity:80°/s

Position,Pitch maximum angular acceleration:≥100°/s2

Physical Feature

Size(mm)

≤788×620×537

Weight(kg)

≤110
