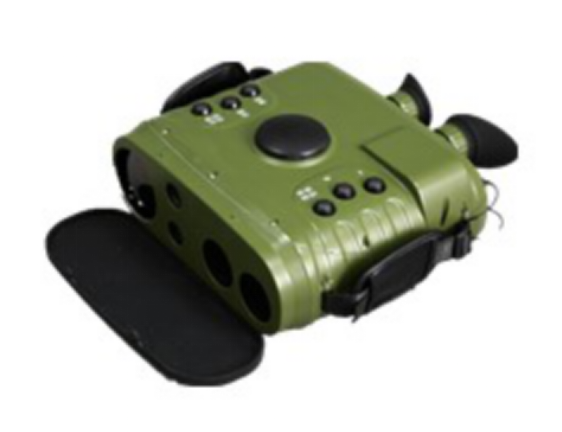

| MH-C53 Hand-hled Muti-functional Infrared Thermal Imager |
Pls click or email to
mh_elec@126.comorjacky@mh-elec.com
Application
* Night vision observation,target detection and information collection, etc...
* Surveillance
* laser ranging
* High Detection sensitivity
* Digital Electronic Compass
* Beidou Positioning Module
* Target bearing Calculating
* Image information recording
Technical Parameters
|
Item
|
Specification
|
|
InfraredUnit
|
Detector
type
|
320×256
Cooled FPA
|
640×512
Cooled FPA
|
|
Spectral
Range
|
3~5μm
|
|
NETD
|
≤30mk(@25℃)
|
|
FOV
|
9°×7.3°2.3°×1.8°
|
|
Focal length
|
60/240mm
|
|
Focusing
|
Electric focusing
|
|
Recognition distance
|
Medium
Tank
(side)≥4km
|
Medium Tank
(side≥5.5km
|
|
Laser Unit
|
Laser type
|
1.57μm(Eye-safe)
|
|
Detection range
|
MediumTank(side)≥4km
|
|
TV
|
FOV
|
12° × 9° 4° × 3.2°
|
|
Recognition distance
|
MediumTank(side)≥5.5Km
|
|
Digital Compass
|
Anglemeasuring precision(RMS)
|
1°(Dip=0°)
|
|
OrientationModule
|
Beidou/GPS，
PositioningAccuracy≤10m
|
|
Power Supply
|
Built-in lithium battery，
Continuous
OperatingTime≥4h
|
|
Environmental Data
|
Operate temperature
|
-40℃~+55℃
|
|
Storage temperature
|
-55℃~+70℃
|
|
Physical Feature
|
Size(mm)
|
≤270×262×108
|
|
Weight(kg)
|
≤4kg(battery included)
|
