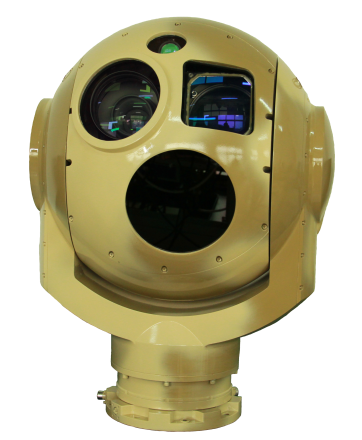

MH-C63Remote photoelectric reconnaissance equipment
Application range
Reconnaissance detection and identification target in day and night. Widely used for security surveillance in any bad weather and harsh environments.
Features and Benefits
1. Reconnaissance detection and identification in the harsh environment and can observe and record in the day and night.
2. Independently serve as a warning and reconnaissance mission
3. Target Ranging is clear and sharp in total darkness, and trough haze, smoke, and light fog.
Specification
|
Items
|
Parameters
|
|
Thermal imager
|
Thermal sensor type
|
640×512Cooled FPA
|
|
Spectral band
|
3~5μm
|
|
Focal length
|
18~250mmContinous zooming
|
|
Laser ranging
|
Laser type
|
1.57μm（eye-safe）
|
|
Detection range
|
15km
|
|
Repetition Frequency
|
Common20PPM，emergency1Hz（work30s，rest1min）
|
|
Visual
|
Focal length
|
20mm~750mm
|
|
Resolution
|
HD
|
|
Minimum illumination
|
0.01Lux
|
|
Servo Platform
|
Rotary range
|
Azimuth：360°×n；Pitching：-54°~+200°
|
|
Rotary speed
|
0.01°/s≤Minimum speed≤0.02°/s
|
|
Physical
characteristics
|
Volume（mm）
|
≤
|
|
Weigh（kg）
|
≤78
|
