| MH-C21/22 thermal imaging camera |
Pls click or email to
mh_elec@126.comorjacky@mh-elec.com

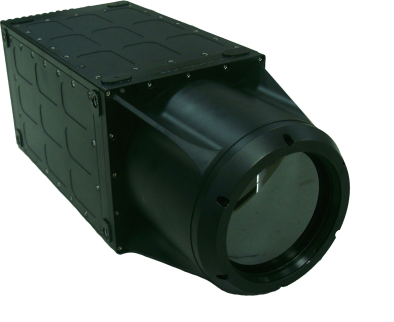

MH-C21XX / 22XX series medium / long waveCooledthermal imaging camera
Application
Remote target detection, night vision observation, suitable for various types of photovoltaic systems.
Features and Benefits
1)With strong optic system that can easily detect and identify the target in ultra distance.
2)Multifunction
3)The structure was compact and solid can be used in all harsh environments and climates.
4) Weather-proof , in all black environment, observe all kinds of target, can effectively detect through smoke, fog, haze and so on.
Specification
|
Model
|
MH-C21XX
|
MH-C22XX
|
|
Detector
|
Type
|
320×256/640×512Cooled FPA
|
|
Spectral Range
|
3~5μm
|
7~9μm
|
|
|
Polarity
|
White / Black
|
|
Calibration
|
Auto / Manual
|
|
Brightness/Gain
|
Auto / Manual
|
|
E-zoom
|
√
|
|
Bad pixel correction
|
√
|
|
Image enhancement
|
√
|
|
Power
|
DC20~32V
|
|
Video output
|
PAL、NTSC、LVDS
|
|
Environmental
|
Working Temperature
|
-40℃~+65℃
|
|
Interface
|
Can be specified by the user
|
|
Lens (can be customized according to customer requirements)
|
30/120mm；30~210mmContinuous zoom
62.5/250mm；62.5~250mmContinuous zoom
50/150/500mm；100~1000mmContinuous zoom
|
