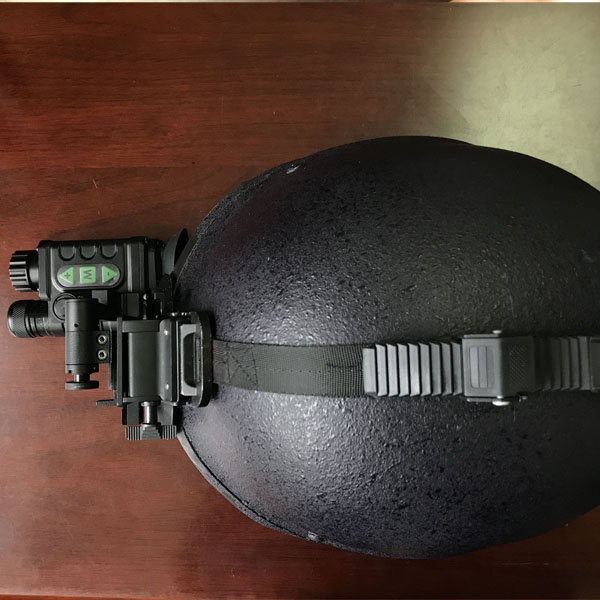

Helmet-Mounted Thermal Monocular

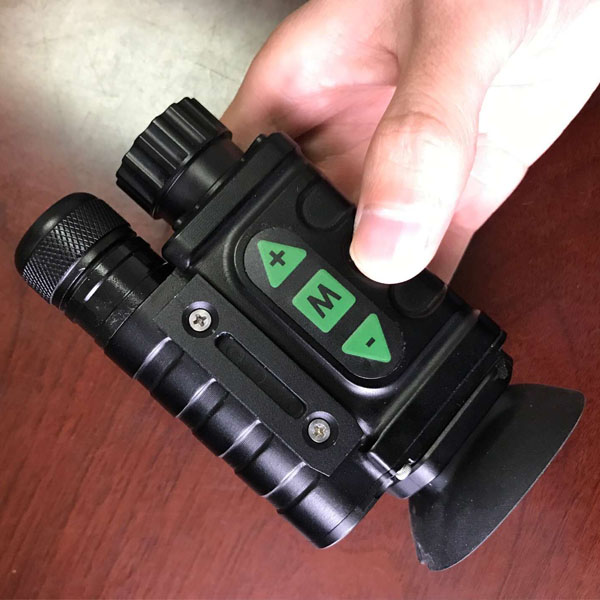

MH-25-3 is the smallest Thermal Imaging Monocular System today. It features extremely small
size and low weight because of its advanced construction and characteristics using the latest technologies in high grade polymers to make a Mil. Spec, system that is identical in size, weight andshape to a MH-25-3. The MH-25-3 is a multipurpose system using thelatest in miniature
thermalsensor technologycombinedwith the new OLED Displaytoprovide a superior
stable image in thesmallest package available.
The system also includes an array of features that help the user to enhance the sight to meet all of their requirements.
The MH-25-3 is one of the most capable thermal monocular systems onthe marketand
comeswith a very affordable price point.
The MH-25-3 system is designed for hand held,head mounts .

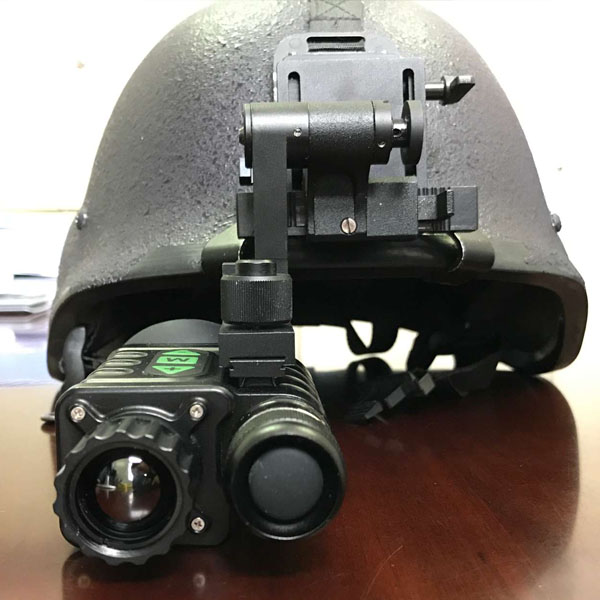

MH253 thermal imaging monoculardevice can be left or right-mounted or in a binocular
configurationand is compatiblewith all majorhelmet mounting systems.Low image latency and 50Hz operation ensures high speed fluid imaging. 384*288 and 640*480 17um resolution options are available. Features include x2/x4 digital zoom,video out is available for integration into system level transmission and recording systems.
|
Item
|
MH325
Thermal
Monocular
for Helmet
|
|
Detector
characteristics
|
Detector type
|
Uncooled
thermal detector
|
|
Array size/format
|
384×288
|
|
manage
|
Field of view
|
27.4°x20.5°
|
|
Focus lens
|
25mm
|
|
NETD
|
60mk@30℃
|
|
Frame rate
|
50HZ
|
|
Focus
|
Manual
|
|
Electronic zoom
|
2X,4X
|
|
Spectral range
|
8～14μm
|
|
display
|
Display
|
Monocular
OLED displa
y(800×600)
|
|
Image polarity
|
8 types of colors
|
|
|
File format
|
JPEG/MPEG4
|
|
Power
supply
|
Battery type
|
Li-Ion,
rechargeable
|
|
Battery
operating time
|
More than
5 hours
continuous
operation
|
|
Environment
|
Operating
temperature
|
-30℃- +60℃
|
|
Storage
temperature
|
-40℃- +70℃
|
|
Encapsulation
|
IP66
|
|
Drop resistance
|
1m
|
|
Physical
characteristics
|
Weight
|
<270g(Without battery
,only device)
|
|
Dimension
(WxHxD)
|
<115×60×37mm
|
|
|
Video output
|
PAL
|
|
Distance
|
Human
(Detection)
|
500m
|
|
Car(Detection)
|
800m
|
|
Human
(Recognition)
|
250m
|
|
Car
(Recognition)
|
400m
|
