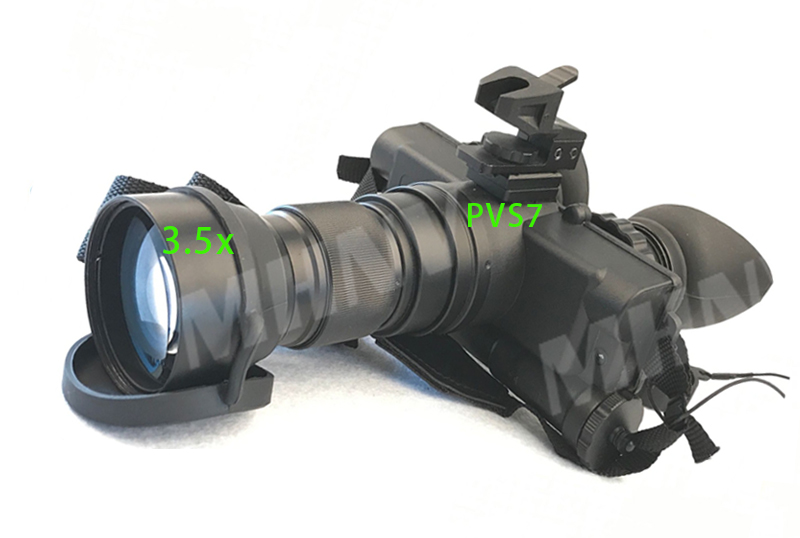

Night Vision Goggles With 3.5x Lens

Pls click or email to
mh_elec@126.comorjacky@mh-elec.com






MAIN FEATURES

* Built-in IR

* FOM (Figure of merit) >1250, US standard

* Equal to PVS-7

* Long range infrared illuminator

* Adjustable interpupillary distance

* Use 1 CR123A type battery

* Bright light cut-off

* Automatic brightness control

* Water and fog resistant

* Wide angle infrared illuminator

* Multi-purpose: hand-held,head-mounted or helmet mounted


Specification of Gen3 night vision goggles
3.5x lens
Specification
Model MH-NVGs
Magnification 3.5x
Lens system 80mm, F/1.57
FOV (Degree) 14
Focus range, m 10m to infinity
Adjusted interpupillary
distance
Yes
Eye relief distance,mm 15
Detection range 400-500m
Power supply 1CR123A type battery, 3V
Diopter setting, D +5, -6
Dimension, mm 212*150*75mm
Weight 700g
Image Intensifier Tube
U.S StandardGen3 Europe Gen3
Classification U.S Gen3 Europe Gen3
Option 1st
Europe Gen3
Option 2nd
Photocathode type 18mm GaAs 18mm S-25 18mm S-25
Resolution, lp/mm 63-72 60-72 57-64
Luminous gain, fl/fcd 45000-55000 25000-45000 16000-25000
Signal-to-noise ratio,
typical
23 23 22
FOM, typical ≥1500 1500 ≥1250
Tube reliability , hours 12000 10000 10000
Warranty, year 1 1 1
Environmental Data
Operating temp. -40℃to + 50℃
Humidity, % at 25℃up to 98%
Shock resistance 5g
IP Level IPX4
IR-ON indicator Yes
