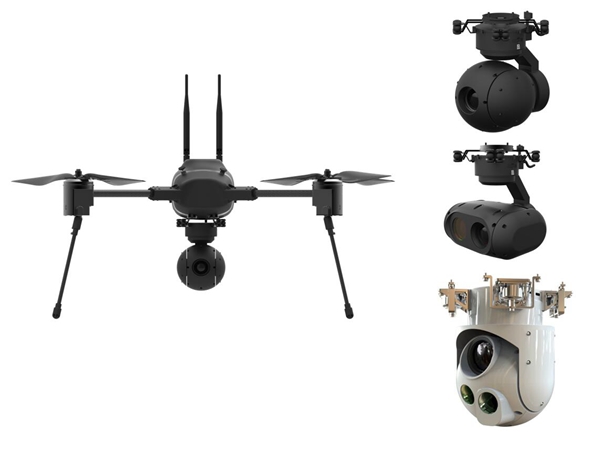

UAV Payload MHU3640
MHU3640 payload is miniature, lightweight, electro-optical, stabilized, airborne sensors which are designed to be carried by a small size UAV, and integrated daylight camera, IR camera and stabilized servo platform, total weight is less 2kg. This payload system can be exploring, searching, identifying and even tracking the subject and live date transmission.
Features:
1.Integrated IR camera, daylight camera, laser range finder, small and light weight.
2. 2-axle Gimbals System, covers all ground-to-air observation
3. Advanced minitype module design, high reliability
4. 1080P HD color daylight video camera, 10x optical zoom
5. Autonomous R&D FPA IR detector and advanced precision imaging system, high quality image
6. High precision stabilized image independent of platform maneuvers and vibrations
7. Advanced algorithm of object identification tracking, high auto tracking accuracy
Application:
1. Power line inspection
2. Environmental monitoring
3. Forest firefighting
4. Law enforcement
5. Solar power inspection
6. Rescue after disaster
Specification:
|
MHU3640
|
|
IR Thermal Imaging camera
|
|
Detector Type
|
Uncooled
|
|
Resolution
|
≥640×480
|
|
Focus
|
Motor-driven
|
|
Focal Length
|
40mm
|
|
FOV
|
18.2°×14.6°（±5%）
|
|
Digital Zoom
|
×1，×2，×4
|
|
Color Palettes
|
Color Palettes and color tape, palette optional
|
|
Temperature Range
|
-20℃~+150℃（high version）
|
|
Temperature Accuracy
|
±2℃或2%（high version）
|
|
Daylight Camera
|
|
Type
|
Visible Video Camera
|
|
Resolution
|
1600 Megapixel
|
|
Pixel
|
1920×1080
|
|
Focal Length
|
27.4mm~274mm（35mm equivalent focal length）
|
|
Frame Rate
|
≥25Hz
|
|
Zoom
|
10x digital zoom
|
|
Storage Format
|
JPG, AVI
|
|
Laser Range Finder
|
|
Spectral Range
|
1550nm（human eyes safety）
|
|
Ranging Distance
|
100~1100m（small target）
|
|
Distance Accuracy
|
±2m
|
|
Servo System
|
|
Azimuth Angle
|
-180°~﹢180°
|
|
Pitching Angle
|
-120°~﹢90°
|
|
Electrical Interface
|
|
Power
|
DC20V~26V
|
|
Stabilized Power Consumption
|
≤20W
|
|
Video Output
|
HDMI
|
|
Control Interface
|
RS232 or RS422 (option)，115200 Baud Rate
|
|
Dimension
|
|
Pod Dimension
|
≤Φ132mm×200mm（Diameter × Height）（excluding damper）
|
|
Envelope Size
|
≤Φ182mm×200mm（Diameter × Height）（including damper）
|
|
Weight
|
≤2kg（including air damper）
|
|
Environmental Adaptability
|
|
Working Temperature
|
-20℃~+55℃
|
