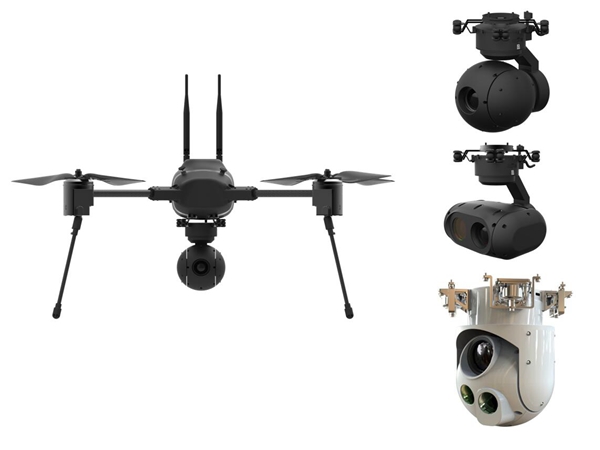

Dual Sensor UAV Payload
MHU2800 is an payload system that consists with 3-axis stabilized gimbals, HD visible camera and uncooled IR thermal imaging camera. This system is not only increasing the UAV’s flight time, but also monitoring and inspecting air-to –ground conditions, as well as equipped with infrared camera for temperature measurement.
Main features:
1. Thermal imaging and temperature measurement functions, switchable modes of temperature measurement and non-temperature measurement.
2. Clearly indentify the abnormal hot spot during 10 meters by IR camera and 10mm screw by HD visible camera
3. 1080P HD visual video and real time IR video streaming, switchable at any time
4. Simultaneous visible photo and IR photo snapshot and continuous shooting
5. 32G storage capacity, simultaneously recording IR and visual video
6. IR video and visible video can superimpose payloads status information and IR video data includes the temperatures of max, min and center.
Applications:
1. Power line inspection
2. Environmental monitoring
3. Forest firefighting
4. Law enforcement
5. Solar power inspection
6. Rescue after disaster
Specification:
|
MHU2800
|
|
IR Thermal Imaging Camera
|
|
Detector
Resolution
|
800×600
|
|
Focal Length
|
25mm
|
|
Frame Rate
|
≥25Hz
|
|
FOV
|
≥28.7°×23.0° (±5%)
|
|
Focus
|
Auto/Manual
|
|
Temperature Range
|
-20℃～150℃
|
|
Temperature
Accuracy
|
±2℃或±2%
|
|
Color Palettes
|
8
|
|
Digital Zoom
|
×1，×2，×4
|
|
IR Image Format
|
JPG/16 bit raw rate（high version）
|
|
IR Video Format
|
AVI或16 bit raw rate（high version）
|
|
HD Visible Camera
|
|
Resolution
|
1600 Megapixel
|
|
Video Resolution
|
1920×1080
|
|
Focal Length
|
27.4mm～274m
m（35mm equivalent
focal length）
|
|
Frame Rate
|
≥25Hz
|
|
Zoom
|
10x digital zoom
|
|
Storage Format
|
JPG, AVI
|
|
Servo Platform
|
|
Azimuth Angle
|
-180°～+180°
|
|
Pitching Angle
|
-120°～+90°
|
|
Roll Angle
|
-35°～+35°
|
|
Power
|
|
Input Voltage
|
DC20V～26V
|
|
Power Consumption
|
Standard：≤20W
|
|
Peak：≤40W
|
|
Interface
|
|
Control Interface
|
RS422
|
|
Video Interface
|
HDMI
|
|
Storage Interface
|
Mini SD Card（32G）
|
|
Physical Characteristics
|
|
Weight
|
≤1.2kg
|
|
Dimension
|
≤155mm
×140mm×200mm
|
|
Environmental
|
|
Operating
Temperature Range
|
-20℃～＋55℃
|
|
Storage
Temperature Range
|
-20℃～＋65℃
|
