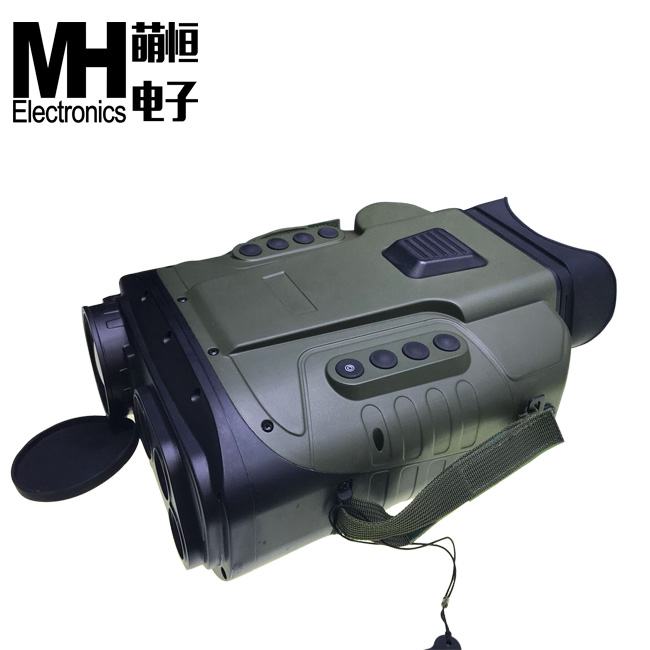

Portable Cooled Thermal Camera

Pls click or email to

mh_elec@126.comorjacky@mh-elec.com


It's multi-functional cooled handheld binocular thermal imager, it integrated thermal imager, visible camera, laser range finder, GPS, electronic compass. It comprises thermal imager with 8x continuous optical zoom. It's rugged and portable.

Working Range

Infrared Thermal Imaging Camera
Detector Type Cooled MCT focal plane array
Resolution 640*512
Pixel Size 15μm
Spectrum 3 μm- 5μm
Focus 30mm~240mm continuous
FOV 18.2°x 14.6°~2.3° x 1.8°
Visible Camera
Focus 4.3 °x 3.5°
Resolution 1920 x 1080

1.8m x0.5m

Human

2.3m x 2.3

m Vehicle

Detection

Range

IR >> 4km

IR >13km

, Visible > 8km

Recognition

Range

IR >4km,

Visible > 2.5km

IR >7km,

Visible > 5km

Function

Position

Accuracy

≤10m (GPS, Plough optional)

Orientation

Accuracy

±0.5° (RMS)
Ranging

Eye-safe, 6km

(2.3m*2.3m typical target)

visibility range is

not less than 15km ,

max measuring range ,

for building 10km

Range

Accuracy

≤±5m
WIFI Transfer analog video with WIFI


enhancement

Auto image filtering and sharp

Brightness/

Control

Auto/manual brightnes

s & contrast sdjustment

Polarity White/ Black hot, palette
Digital Zoom 2x
Video Storage Built-in 16G SD card
View Finder OLED 1280x1024
Interface

Electical

interface

Power, video PAL

(NTSC can customizable)

communication RS232,

WIFI, USB, Buit-in GPS

Mechanical

interface

1/4 inch standard interface
Power
Power input

12V power adapter or built-in

Li-ion battery,voltage input

range 12V-32V

Battery

working time

≥4hours
Environment Parameters
Working Temp.

-40℃ ~ +60

℃(Except for display equipment)

Encapsulation IP67

Electromagnetic

Compatibility

GJB 151A-97
Physical Characteristics
Weight 3.7kg( Including battery )
Size 315mm x 250mm x 118mm



 Request A quick Quote (WhatsApp:+ 86-18792456795)
