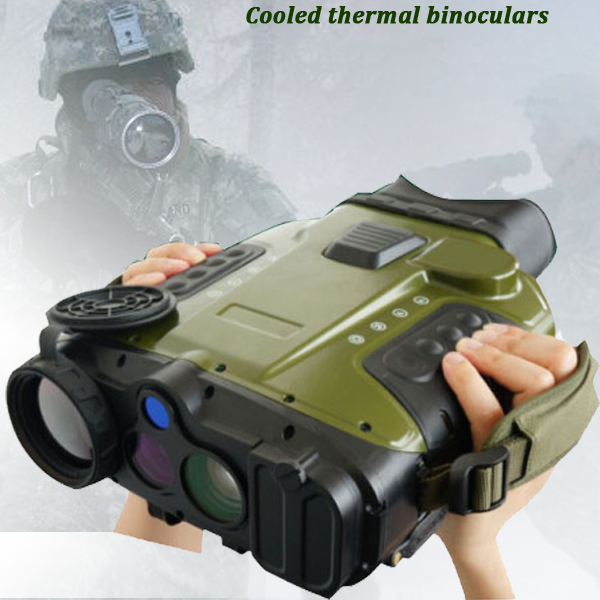

Model no. MH-MC6320
|
|
Detector
|
|
Type
|
Cooled MCT focal plane array
|
|
Resolution
|
320*256
(640*512 by micro -scanning)
|
|
Pixel Size
|
30μm
|
|
Spectrum
|
3.7μm-4.8μm
|
|
Lens
|
|
Focal Lenth
|
60mm/240mm,2-FOV
|
|
F#
|
4.0
|
|
FOV
|
NFOV: 2.29°x1.83
WFOV:9.15°x 7.32°
|
|
Human
|
Detection
|
6km
|
|
1.8mx0.5m
|
Recognition
|
2km
|
|
Vehicle
|
Detection
|
9km
|
|
2.3mx2.3m
|
Recognition
|
4km
|
|
Image Presentation
|
|
Infrared Video Type
|
Analog Video:PAL 25Hz
,Network video 100M
|
|
OLED
|
0.5 inch high-resolutio
OLED 800x600
|
|
Image Enhancement
|
VGA video
|
|
Brightness/Control
|
Auto/manual brightness
& contrast sdjustment
|
|
Polarity
|
B & W,B&W inverse
,Pseudo(8 palettes)
|
|
Electronic Zoom
|
x1,x2,x4
|
|
Storage Memory
|
16G SD card
|
|
Image Shool
|
10000*.JPEG images
|
|
Video Storage
|
2.5h of AV
I lossless compressed video
|
|
Visual Camera
|
|
Resolution
|
800x600
|
|
Focal Length
|
119mm
|
|
Video Format
|
1/4"
|
|
Digital Compass
|
|
Resolution
|
0.1°
|
|
Measurement Accuracy
|
0.5（RMS)
|
|
GPS
|
|
GPS
|
±5m(external GPS supported)
|
|
Laser Range Finder
|
|
Wave Length
|
1.57μm,eye-safe
|
|
Measurement Accuracy
|
±5m
|
|
Measurement Range
|
≥4km for 2.3mx2.3m target
|
|
Power input
|
2.4Vpower adaptor or
standard polymer lithium battery
|
|
Power Dissipation
|
≤26W(ambient temperature 20 ℃）
|
|
Operating Tims
|
≥5 hours
|
|
Interfaces
|
|
Electric Interface
|
Power supply,USB,analog video
,network interface
|
|
Machanical Interface
|
1/4" Tripod
|
|
Working Temperature
|
-40℃~ +55℃
|
|
Storage Temperature
|
-55℃ ~+70℃
|
|
Humidity
|
5% ~95%， non-condensation
|
|
Weight
|
3.3kg(including battery)
|
|
Size
|
362mmx235mmx120mm
(including eyepiece)
|
