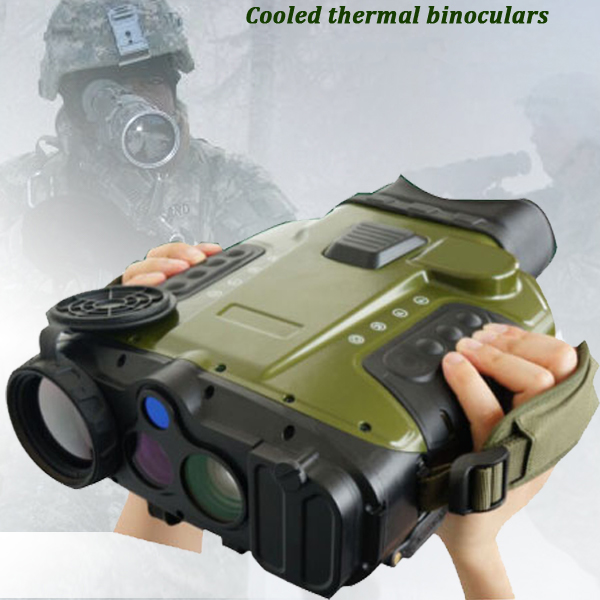

Cooled Thermal Binoculars

Pls click or email to


mh_elec@126.comor jacky@mh-elec.com




MH-MC series Multi-functional cooled thermal binoculars,comprise a thermal imager with 8X continuous optical zoom,CCD visual camera digital compass GPS and a visuable camear,MH-MC series are compact and portable.It is designed for border.


Features of MH-MC3640 Cooled Thermal Binoculars
Detector
Type Cooled MCT focal plane array
Resolution 320*256
(640*512 by micro -scanning)

Pixel Size 30μm
Spectrum 3.7μm-4.8μm
Lens
Focal Lenth

30mm~240mm continuous

zooming ,auto focus

F# 4.0
FOV 18.18 °x 14.59°~2.29° x 1.83°
Human Detection 6km
1.8mx0.5m Recognition 2km
Vehicle Detection 9km
2.3mx2.3m Recognition 4km
Image Presentation
Infrared Video Type

Analog Video:PAL 25Hz

,Network video 100M

OLED

0.5 inch high-resolutio

n OLED 800x600

Image Enhancement

Automatically image noise filter

,DDE,reticle and blanking

Brightness/Control

Auto/manual brightness

& contrast sdjustment

Polarity

B & W,B&W inverse

,Pseudo(8 palettes)

Electronic Zoom x1,x2,x4
Storage Memory 16G SD card
Image Shool 7000 *.JPEG images
Video Storage 5h of MP4 video
Visual Camera
Resolution 640x512
Focal Length 119mm
Video Format 1/4"
Digital Compass
Resolution 0.1°
Measurement Accuracy 0.5(RMS)
GPS
GPS ±5m(external GPS supported)
Laser Range Finder
Wave Length 1.57μm,eye-safe
Measurement Accuracy ±5m
Measurement Range ≥6km for 2.3mx2.3m target
Power input

2.4Vpower adaptor or standard

polymer lithium battery

Power Dissipation ≤26W(ambient temperature 20 ℃)
Operating Tims ≥3.5 hours
Interfaces
Electric Interface

Power supply,USB,analog video

,network interface

Machanical Interface 1/4" Tripod
Working Temperature -40~ +55
Storage Temperature -55 ~+70
Humidity 5% ~95% non-condensation
Weight 5.2kg(including battery)
4.7kg(without battery)
Size 370mmx258mmx112mm
(including eyepiece)
