Our Advantage of Binocular Handheld Thermal Infrared Camera

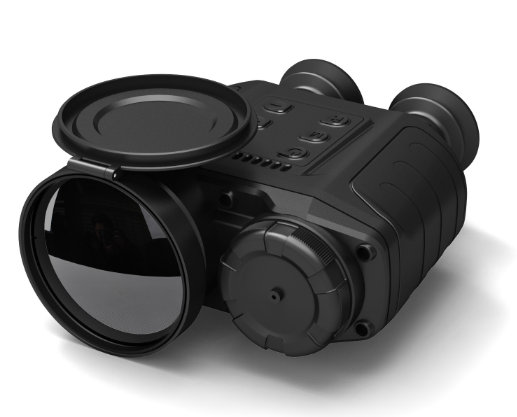

With renewed figure and superior functions, MH night vision MH-IR516F, binocular thermal infrared camera, sets a new standard for small, lightweight thermal imaging cameras, which is an ideal choice for day and night security surveillance. Thermal image and video storage functions store the detection process as an evidence for review. Well sealed housing enables MH-IR516FThermal Infrared Camerawith good encapsulation which fulfills the requirement of tough operation. With all these features,MH-IR516FThermal Infrared Camerais essential for public safety, police office and security operations.
1)Light weight and rugged design;
2)Unmatching imaging performance;
3)Image capture, mission reporting;
4)Waterproof and shockproof;
5)License free & rapid delivery;
|
Detector type
|
Uncooled FPA microbolometer
|
|
Spectral range
|
8~14μm
|
|
Pitch
|
384×288
|
|
Pixels
|
25μm X 25μm
|
|
Lens
|
61mm or 80mm,two options
|
|
FOV
|
9°×6.75°/6.87°×5.15°
|
|
Image StorageType
|
4GB SD card
|
|
File format
|
BMP/AVI
|
|
Focus
|
61mm or 80mm
|
|
Display
|
OLED viewfinder
|
|
Display
|
852 X 600 pixels
|
|
Display
|
256 level gray
|
|
Video output
|
PAL
|
|
Frame frequency
|
50Hz
|
|
Electronic zoom
|
×2, x4
|
|
Adjust
|
Auto/Semi-auto/Manual brightness/Contrast Adjustment
|
|
AC/DC adapter
|
110-240VAC/ 9VDC
|
|
Rechargeable Li-ion
|
7.2VDC 2AH
|
|
Power dissipation
|
<4.8W @25℃
|
|
Battery operating time
|
>3hrs @25℃
|
|
Operating temperature
|
-20℃~50℃(-40℃~60℃optional)
|
|
Storage temperature
|
-40℃~60℃
|
|
Encapsulation
|
IP67
|
|
Interfaces
|
Analog Video Output/USB port/RS232
|
|
Color
|
Black
|
|
Weight
|
1.5kg
|
|
Size
|
195mm*90mm*160mm
|
