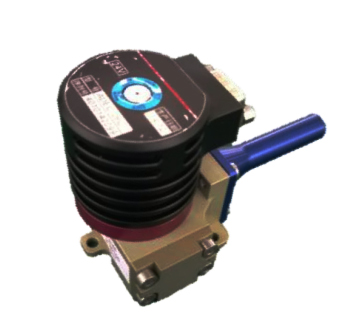

MH580 Rotary Stirling Cryocoolers

MH580 is a  member of a series of rotary stirling cryocoolers produced by MH. Motor windings separated from the working gas prevents contamination. Adopting high wear-resisting coating and clean room assembly are applied to prolong the lifetime and high reliability. For compactness, the electronic drive is integrated. An onboard temperature sensor offers stand-by, remote shutdown and over-temperature protection options. Direct integration of a Dewar on a cooler(IDDCA) can be implemented to achieve compactness and efficiency.

DETECTORS :Small Format Arra,y Mid Format Array, Large Format Array

APPLICATIONS
Hand Held Thermal Imagers Missile Warning Systems Thermal Weapon Sights
Fire Control Systems-AFV/MBT Border Surveillance
UAV’s
Field Observations
Airborne EVS
Space
Gas Leak Detection
FTIR
Non Destructive Testing


Specification

Baseline MTTF > 10.000 hrs

Mass : <430 g

Cooling power > 550 mW

Ambient temperature range:Operational: -45 °C … +85°C Non-operational: -56 °C … +85 °C

Meets Environmental Conditions per: MIL-STD-810

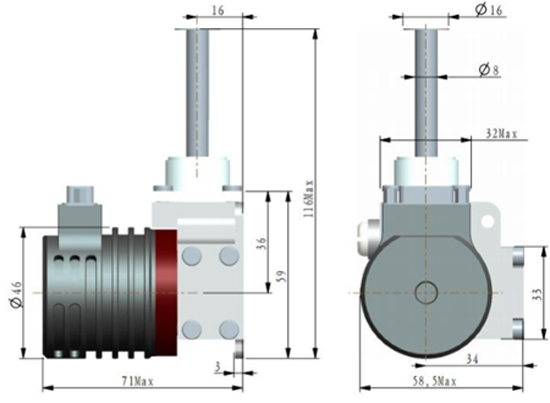

Dimensions :
