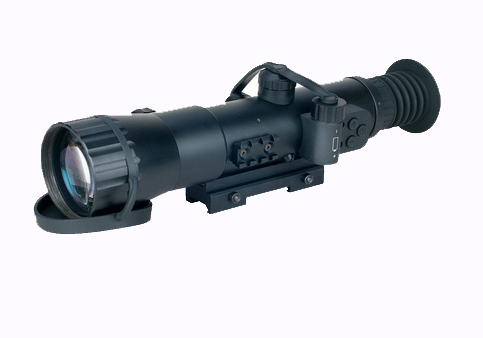

Night vision weapon sight with 6x magnification
(MH-760)
DESCRIPTION
This is series scope can be equipped with different Magnification objective lens based on the same appearance. Currently there are three models: MH540 can be used for 95,06 88 etc, guns with 4x objective lens, MH760 can be used for 03,88, 89 etc, guns with 6x objective lens, MH880 can be used for 85,88,89 etc, guns with 8x objective lens.
KEY FEATURES
-Integration fixture, can be applied to many common guns.
-Different magnification objective lens work for short and long distance shooting.
-Dot-cross and crossbow reticle.
-SF Objective lens.
-Adjustable illumination reticle.
-Shockproof, can be used for strong recoil gun.(INCL.375 H&H, 416 RIGBY, 50 CAL)
-Design by Texas(US) night vision expert.
-High accuracy adjustment of reticle, 60 click each circle.
-Easy to operation.
-Adjustable diopter ocular.
-Waterproof
SPECIFICATION
|
Model
|
MH540
|
MH-760
|
MH-880
|
|
Magnification, x
|
4
|
6
|
8
|
|
Field of view, deg
|
12°
|
10°
|
8°
|
|
Lens system
|
118mmF
/1.5
|
80mm F/
1.4
|
156mm F
/1.6
|
|
Focus range, m
|
10 m to infinity
|
|
Eye relief distance, mm
|
45
|
|
Diopter setting, D
|
+3, -4
|
|
Overall dimensions, mm
|
80x95x82
|
290x95x82
|
295x216x216
|
|
Weight w/
out headgear, g/oz
|
1030/36
|
1300 / 45
|
1350/48
|
|
Power supply
|
1 CR123 batteries, 3V
|
|
Estimated battery life w/out IR, 73°F,
hour
|
up to 60
|
GEN III / GEN II IMAGE INTENSIFIER TUBES
|
Classification
|
OMNI III, IV
|
OMNI II
|
|
Photocathode type
|
18mm GaAs
|
18mm S-25
|
|
Photocathode sensitivity, typical,μA/lm
|
≥1800
|
≥550
|
|
Resolution, typical, lp/mm
|
63-72
|
48-58/ 57-64/60-72
|
|
Luminous gain, typical, fl/fcd
|
45000-55000
|
19000-25000
|
|
Signal-to-noise ratio, typical
|
23:1 or better
|
20:1 or better
|
|
FOM, typical
|
≥1500
|
≥1150
|
|
Tube
reliability standard, hour
|
12000
|
10000
|
|
Keep time,
typical, year
|
15
|
10
|
|
Warranty,
year
|
2
|
EFFECTIVE DISTANCE
|
Detection range, approx., m/yard
|
|
-quarter moon
|
up to 400/440
|
up to 310/350
|
|
-cloud cover
|
up to 250/275
|
up to 200/ 220
|
|
Recognition range, approx., m/yard
|
|
-quarter moon
|
up to 250/275
|
up to 180/200
|
|
-cloud cover
|
up to 200/220
|
up to 150/175
|
|
5mW IR
illuminator, approx., m/yard
|
up to
100/24
|
ENVIRONMENTAL DATA
|
Operating temperature, °C/°F
|
−40° to +50°/-40° to +122°
|
|
Storage temperature, °C/°F
|
0° to +50°/32° to +122°
|
|
Immersion, hour
|
1 meter for 0.5 (Optional)
|
|
Humidity,
%
|
up to
98%
|
