Night vision riflescope for Hunting

Pls click or email to

mh_elec@126.comorjacky@mh-elec.com

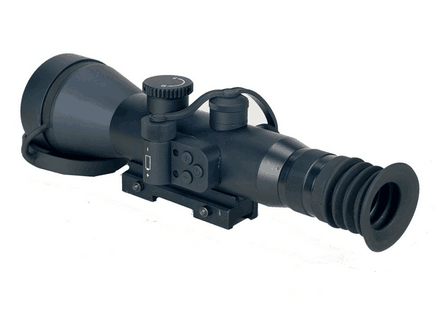

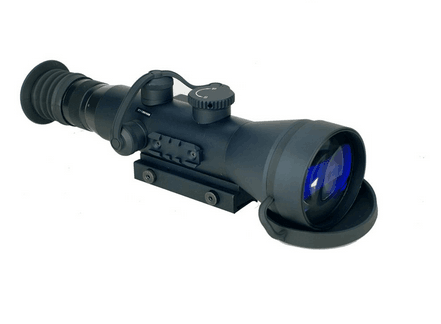

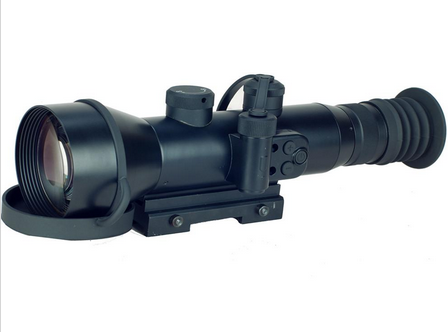

Night vision riflescope with 3x magnification

(MH-580)



DESCRIPTION

TheMH-580is superior for long range shooting, with outstanding accuracy in the most unfavorably-able condition, it is the best in the industry power consumption, 60 hours of battery life time.


KEY FEATURES

-Superior for long range shooting.
- Lightweight
-Internal-lit mil-dot illuminated red-on-green or yellow on-green reticle with adjustable brightness.
-Top mounted internal front lens focus adjustment.
-Precision internal wind-age/elevation. Adjustment( 1cl=10mm/m)
-Shockproof, can be used with heavy recoil(375 H&H,416 RIGBY, 50 CAL) weapons.
-Standard Weaver MIL-STD-1913 rail mount system.
-80% of value based on US made components and technology.
- Automatic brightness control.
-Protected against excess light exposure.
-Easy to operate.
-Photo/video equipment adaptable.
-Rifle’s zero adjustment is not required when change the type weapon.
-Built-in high power(75MW) IR illuminator with adjustable power level.

-Water resistance.

SPECIFICATION

Model

MH583

MH-580

MH-581

Magnification, x

4

6

8

Field of view, deg

12°

10°

Lens system

80mm F/1.6

110mmF/1.5

150mm F/2.0

Focus range, m

10m to infinity

5.0m to infinity

10 m to infinity

Eye relief distance, mm

45

Diopter setting, D

+3, -4

Overall dimensions, mm

269x99x87

294x89x81

303x85x84

Weight w/out headgear, g/oz

1120/39.5

1300 / 44

1500/52.9

Power supply

1 CR123 batteries, 3V

Estimated battery life w/out IR, 73°F, hour

up to 60


GEN III / GEN II IMAGE INTENSIFIER TUBES

Classification

OMNI III

OMNI II

Photocathode type

18mm GaAs

18mm S-25

Photocathode sensitivity, typical,μA/lm

≥1800

≥550

Resolution, typical, lp/mm

63-72

48-58/ 57-64/60-72

Luminous gain, typical, fl/fcd

45000-55000

19000-25000

Signal-to-noise ratio, typical

23:1 or better

20:1 or better

FOM, typical

≥1500

≥1150

Tube reliability standard, hour

12000

10000

Keep time, typical, year

15

10

Warranty, year

2


EFFECTIVE DISTANCE

Detection range, approx.,  m/yard

-quarter moon

up to 400/440

up to 310/350

-cloud cover

up to 250/275

up to 200/ 220

Recognition range, approx., m/yard

-quarter moon

up to 250/275

up to 180/200

-cloud cover

up to 200/220

up to 150/175

5mW IR illuminator, approx., m/yard

up to 100/24


ENVIRONMENTAL DATA

Operating temperature, °C/°F

−40° to +50°/-40° to +122°

Storage temperature, °C/°F

0° to +50°/32° to +122°

Immersion, hour

1 meter for 0.5 (Optional)

Humidity, %

up to 98%
