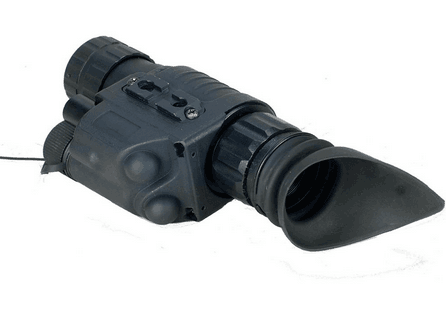

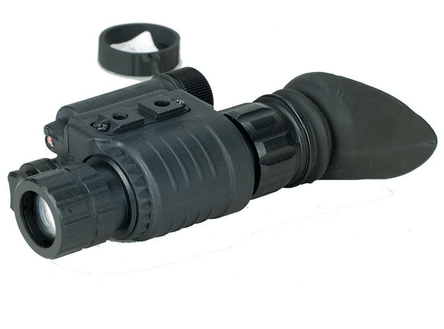

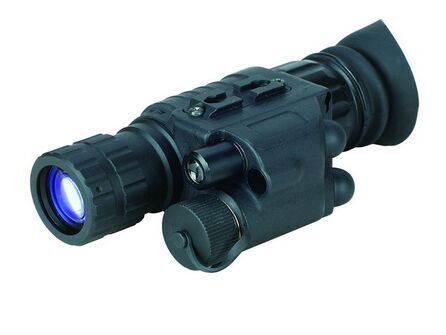

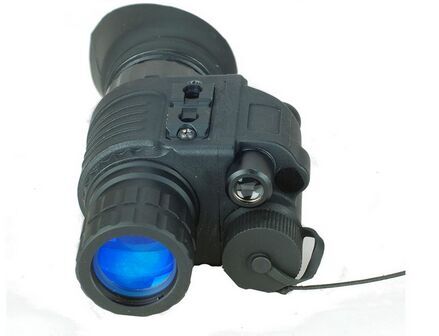

PVS14 MONOCULAR GREEN PHOSPHOR NIGHT VISION

Pls click or email to
mh_elec@126.com or jacky@mh-elec.com

PVS-14 GREEN PHOSPHOR NIGHT VISION MONOCULARPVS-14 GREEN PHOSPHOR NIGHT VISION MONOCULARThe PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function, and uses the highest grade Gen 2+ tubes



MH's Global Vision PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by MH to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS- 14 can be used as a handheld device, or mounted on a head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, providing night vision capabilities to daytime optical sights. The PVS- 14 monocular conforms to Military standards, and is of the highest quality form and function. The PVS-14 monocular is a full-featured unit, weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The automatic brightness control ensures a consistent, steady image by automatically adjusting the visual in real time, based on the available light in the area. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. MH night Vision PVS-14 includes an array of optional accessories to support virtually any operation.

  • Compact, rugged design
  • Waterproof
  • Weapon mountable
  • Head or helmet-mountable for hands-free usage
  • Manual gain control
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • Limited two-year warranty


SPECIFICATION

Model

Mini MH-NVM

Magnification, x

1

Field of view, deg

40°

Lens system

26.8mmF/1.2

Focus range, m

0.25 / 10” to infinity

Eye relief distance, mm

15

Diopter setting, D

-6~+5

Overall dimensions, mm

163*76*55

Weight w/out headgear, g

380

Power supply

1 CR123 Batteries

Estimated battery life w/

out IR, 73°F, hour

CR123-up to 80




Classification

Gen2+

Gen3

Photocathode type

18mm S-25

18mm S-25

Photocathode sensitivity, typical,μA/lm

600-900

600-900

Resolution, typical, lp/mm

48-58

57-70

Luminous gain, typical, fl/fcd

19000-30000

20000-30000

Signal-to-noise ratio, typical

20:1 or better

21:1 or better

FOM, typical

≥1150

≥1350

Tube reliability standard, hour

10000

10000

Keep time, typical, year

10

10

Warranty, year

1


ENVIRONMENTAL DATA

Operating temperature, °C/°F

−40° to +50°/-40° to +122°

Storage temperature, °C/°F

0° to +50°/32° to +122°

Immersion, hour

1 meter for 0.5 (Optional)

Humidity, %

up to 98%

Technical specifications are for reference only.
