| PVS14 B-22 Multifunctional Night Vision Monocular Weapon Sight |
DESCRIPTION

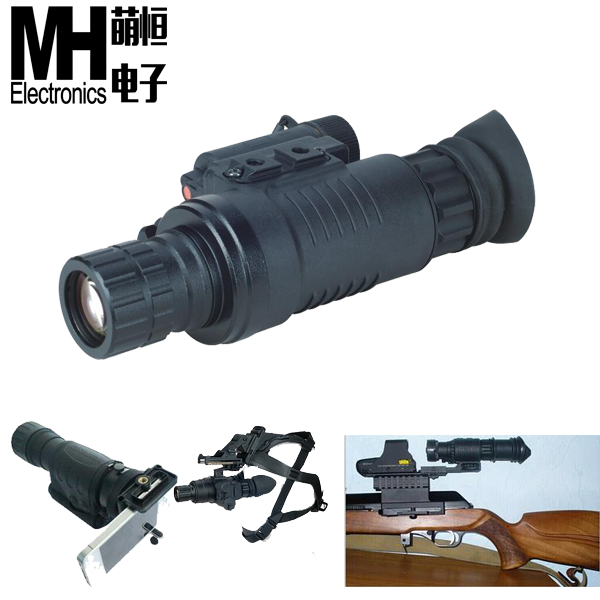

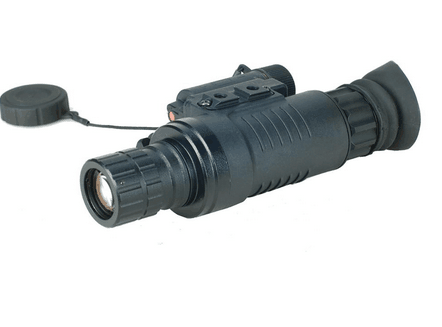

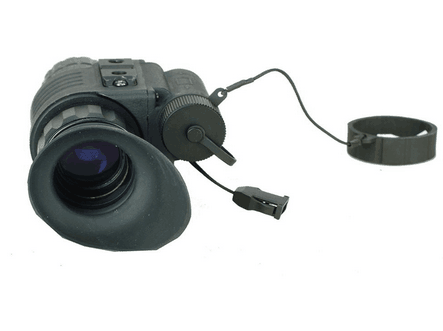

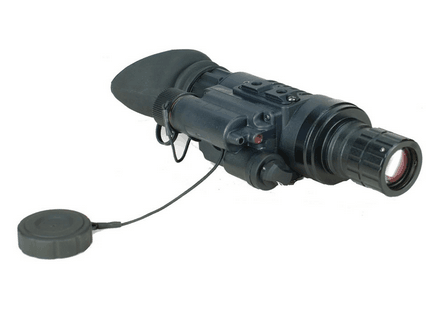

The ruggedly designed tactical MHB-22 night vision monocular features automatic brightness control, integrated IR illuminator, IR “On” and low battery indicators to achieve high performance, The device guarantee quality image for surveillance at night, The unit is operate very the single standard AA battery.
This durable and reliable device are widely use in many Special Force around the globe. The monocular is assembled with the highest quality Gen3 and Gen2+ ANVIS type images intensifier tubes, MHB-22 may be combined with 3x or 5x magnification fier lenses to future extend the viewing capability.
KEY FEATURES
-Lightweight
-Easy to operate
-Hand-held, head and weapon mountable.
Allowing for ACH/MICH helmets mountable.
-Photo and video equipment adaptable.
-Automatic brightness control.
-Internal “low battery” and “IR-on” indicators.
-Internal reticle aiming systems
-Protected against excess light exposure.
-Integrated(5MW IR illuminator.
-Comfortable for prolonged wear.
-Waterproof, corrosion and dust-resistant.
-May be equipped with a wide variety of optional accessories including 3x or 5x magnifier lens, weapon mount, demist shield, sacrifice window, day scopes couple and many others.
SPECIFICATION
|
Model
|
MHB-22
|
|
Magnification,
x
|
1
|
|
Field
of view, deg
|
40°
|
|
Lens
system
|
26.8mmF/1.2
|
|
Focus
range, m
|
0.25 / 10” to infinity
|
|
Eye
relief distance, mm
|
15
|
|
Diopter
setting, D
|
+5/-5
|
|
Overall
dimensions, mm
|
163x76x55
|
|
Weight
w/out headgear, g/oz
|
384/ 13.5
|
|
Power
supply
|
1 AA batteries 1.5V
/1 CR123 Batteries
|
|
Estimated
battery life w
/out IR, 73°F, hour
|
AA-up to 40, CR123-up to 80
|
GEN III / GEN II IMAGE INTENSIFIER TUBES
|
Classification
|
OMNI III
|
OMNI II
|
|
Photocathode type
|
18mm GaAs
|
18mm S-25
|
|
Photocathode
sensitivity, typical,μA/lm
|
≥1800
|
600-900
|
|
Resolution, typical, lp/mm
|
64-72
|
48-58/57-70/60-72
|
|
Luminous gain, typical, fl/fcd
|
45000-65000
|
19000-30000
|
|
Signal-to-noise ratio, typical
|
23:1 or better
|
20:1 or better
|
|
FOM, typical
|
≥1500
|
≥1150-1350
|
|
Tube
reliability standard, hour
|
12000
|
10000
|
|
Keep time,
typical, year
|
15
|
10
|
|
Warranty,
year
|
2
|
EFFECTIVE DISTANCE
|
Detection range, approx., m/yard
|
|
-quarter moon
|
up to 300/330
|
up to 200/220
|
|
-cloud cover
|
up to 250/275
|
up to 125/ 140
|
|
Recognition range, approx., m/yard
|
|
-quarter moon
|
up to 225/245
|
up to 145/160
|
|
-cloud cover
|
up to 175/190
|
up to 115/125
|
|
5mW IR
illuminator, approx., m/yard
|
up to 30/12
|
ENVIRONMENTAL DATA
|
Operating temperature, °C/°F
|
−40° to +50°/-40° to +122°
|
|
Storage temperature, °C/°F
|
0° to +50°/32° to +122°
|
|
Immersion, hour
|
1 meter for 0.5 (Optional)
|
|
Humidity,
%
|
up to
98%
|
