640*480 Thermal Rifle Scope with 75mm Lens


Pls click or email to


mh_elec@126.comorjacky@mh-elec.com

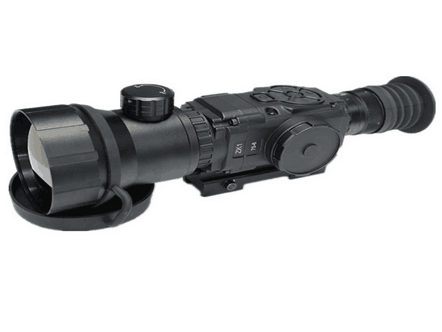

MH-75-6Thermal Rifle Scope



PRODUCT OVERVIEW:


Thermal image MH series are a solid state, uncooled, long-wave infrared, magnified dedicated weapon scope intended for day and night engagements without the need to remove the sight from the rifle.  And they are advanced and great helpful equipment for hunting lovers. Thermal image can cut through total darkness, haze, dust,fog and smoke to detect target, and help to see through various animal camouflage. With proper mount with hunting gun like 1913 picatinny rail, the thermal image also helps to shoot the animals.


Features:


Technical Details:

Type

Uncooled

Sensor (microbolometer)

640x480 px

Material

Ulis

Image Size (output resolution)

800x600 px

Frame rate

50 Hz

Display

Color OLED matrix, SVGA< 800x600

Thermal Sensitivity

<50 mK

Lens System

75 mm

Field of View (H x V)

8.3x6.2

Eye Relief

52 mm

Optical Magnification

6X

Objective lens Diameter

70mm

Distance of the human detection

1800 m

Distance of the human recognition

700 m

Distance of the human identification

460 m

Reticle Color

White & Black

Brightness adjustment

Manual

Sharpness adjustment

Automatic

Start up time

<5 sec

Polarity control

White hot / Black hot / Multiple Color Modes

Environmental Rating

Waterproof / Dust proof

Battery type

CR123 battery type

Battery Life

6 hrs

Mounting bracket

Picatinny rail

Low Battery Indicator

Yes

Dimension

300x55x50(mm)

N.W.

1.3kg

Warranty

2 years
