MH-SM567-3 Thermal imaging Core


Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795

Email: mh_elec@126.com or jacky@mh-elec.com


MH's engineers could realize the NETD of uncooled thermal imaging modules to 14mk, it is the best!


MH-SM567-3 Thermal  Core is the smallest and lightest fully-integrated uncooled camera in existence. It is designed for thermal imaging applications that require minimum volume and weight. Several lens options are available forMH-SM567-3 Thermal  Core, as well as a lens-less camera body for OEM customers.



Description


MH's  generation 2 thermal imaging core MH-SM567-3 is specially designed for better, smaller, cheaper integration by OEM clients. With an advanced platform, the engine supports a 17μm 384×288 detector. Software and firmware modules can be easily developed and modified to any specifications. Due to the engine's user friendly interface and attractive size, it can be integrated cost-effectively into small-size applications, a key marketing advantage for dual use applications.

MH-SM567-3 supports the most advanced motorized lenses based on continuous zoom or dual FOV and equipped with automatic focus algorithms.


Features



*Easy integration
*High performance
*Low power consumption
*Rugged military grade design

*NETD≤30mk at f/1.0 300K


Why choose MH-SM567-3?


With easy system integration and rugged design, this high performance uncooled thermal engine is MH's best-in-class for image processing and can be integrated cost effectively into small applications.

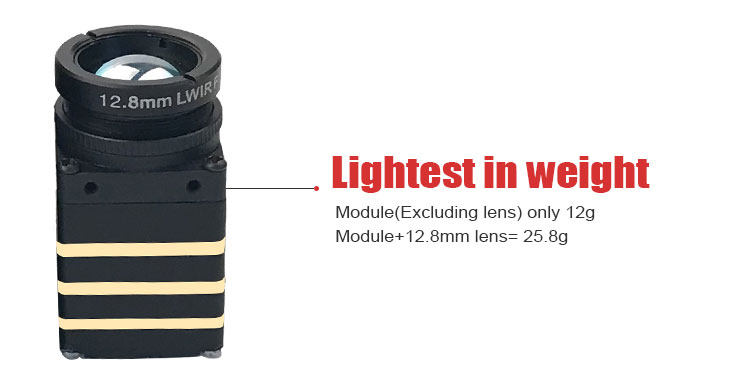

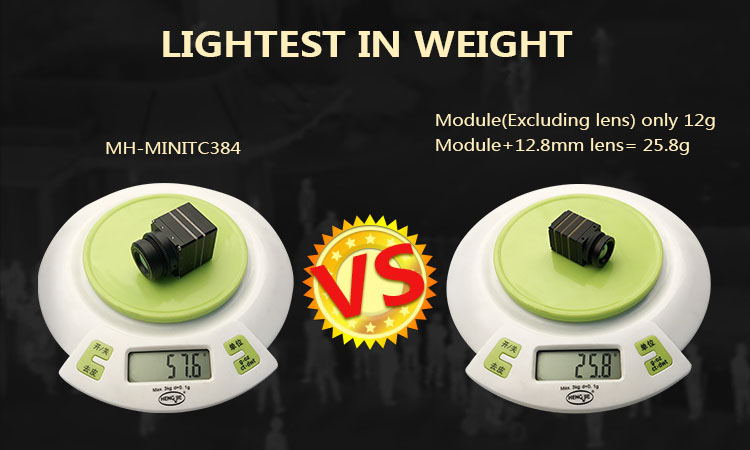

What is the weight of MH-SM567-3?


12g only!

thermal core


DoesMH-SM567-3 can beintegrated small drones?

Absolutely yes! see below pictures:

thermal cameras for drones

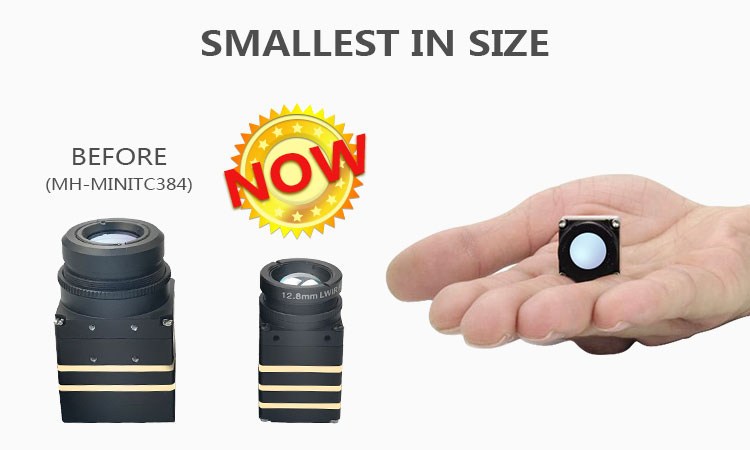

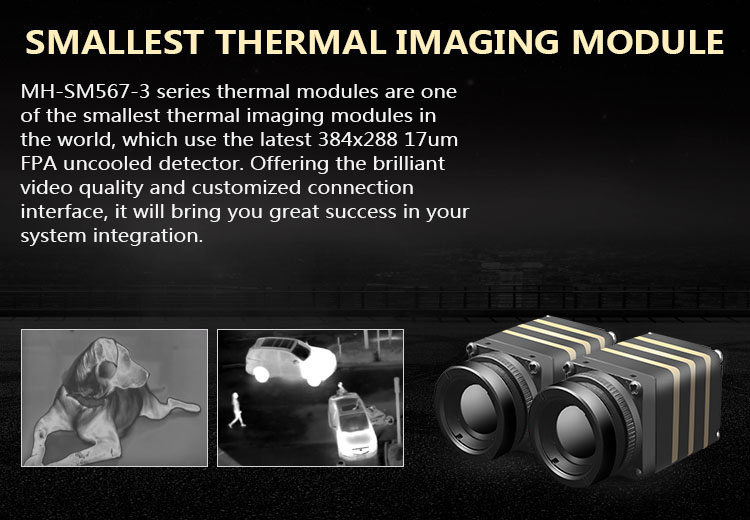

Smallest Thermal  Camera  Core in the world, Model No. MH-SM567-3

drone camera thermal


Gen2 17μm microbolometer thermal camera core platform is especially designed for better, smaller, cheaper integration by OEM clients who need high resolution in night.

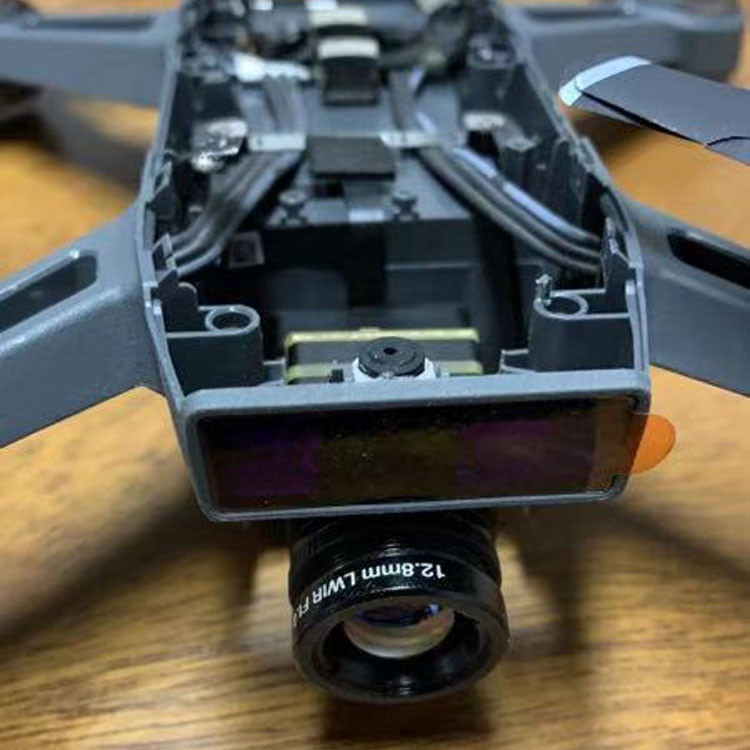

thermal camera core mounted to Dji drone


Thermal camera core designed for makers of thermal imaging solutions for commercial, civil and military markets who seek class leading performance at an affordable price.



thermal camera for drones

1. specification of smallest thermal cameras,Module No.MH-SM567-3


Detector
Detector type

Uncooled

amorphous silicon FPA

FPA format , px 384x288
Pixel pitch, μm 17
Sensitivity ≤80mk at f/1.0 300K
Frame rate, Hz 50Hz
Spectral range, μm 8~14


2. It is smallest in the world of size and weight,LWIR Uncooled Thermal Imaging Cameras offer an unmatched set of features such as radiometry, increased sensitivity , frame rates, and powerful image processing modes.


Thermal Imaging Camera Core

LWIR Uncooled Thermal Imaging Cameras

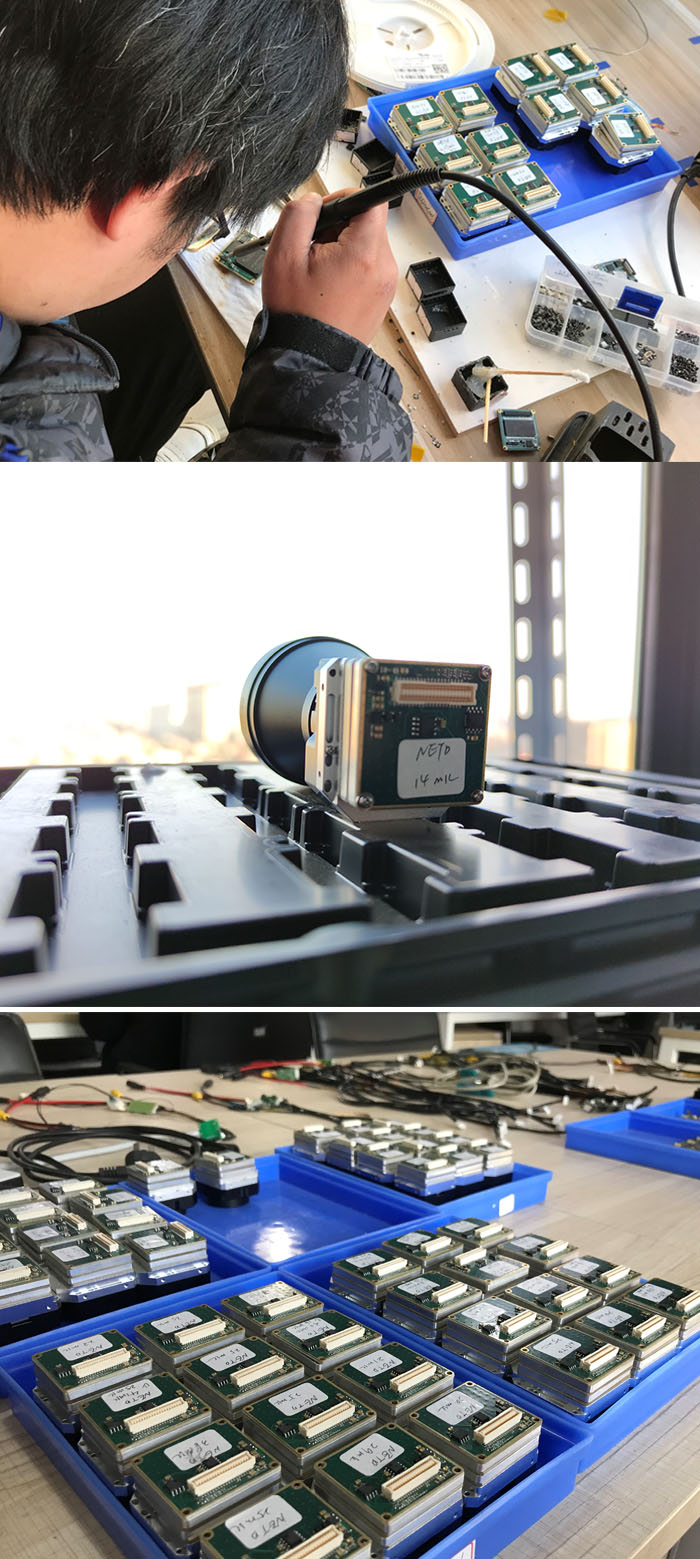

3.We could produce different interface boards of thermal cameras as your requirement

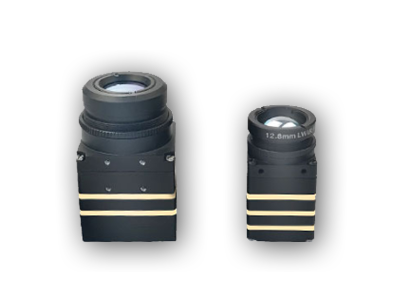

thermal cameras with different lens


4.With our  factory very wide  powerful thermal cameras and OEM thermal camera cores and components, our factory supplies more thermal imagers for unmanned platforms than any other company in the world.


Thermal Cameras and Infrared Camera Cores for Unmanned Systems






Thermal Imaging Camera Core

LWIR Uncooled Thermal Imaging Cameras

3.We could produce different interface boards of thermal cameras as your requirement

thermal cameras with different lens


4.With our  factory very wide  powerful thermal cameras and OEM thermal camera cores and components, our factory supplies more thermal imagers for unmanned platforms than any other company in the world.

Thermal Cameras and Infrared Camera Cores for Unmanned Systems
